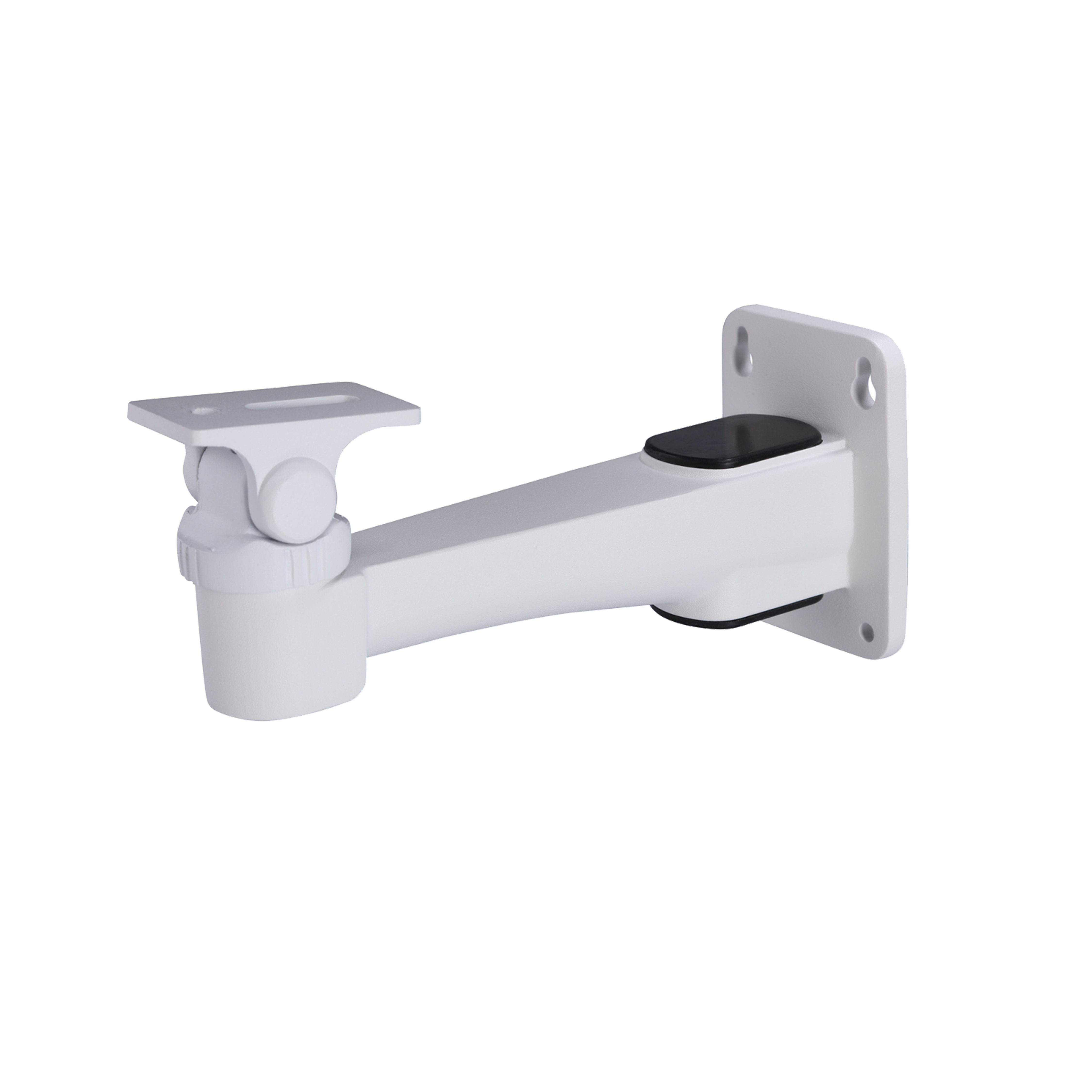

PFB121W

Key Points
    > Built of aluminum alloy.
    > Suitable for a variety of cameras and is elegant.
    > Supports being adjusted 360° horizontally and between –60° to 0° vertically.



Sales Enquiry
Datasheet

Specifications

Technical Specification

Structure

Casing Material

Aluminum alloy

Product Dimensions

190.0 mm × 58.0 mm × 89.5 mm (7.48" × 2.28" × 3.52") (L × W × H)

Appearance Color

White

Net Weight

0.25 kg (0.55 lb)

Gross Weight

0.31 kg (0.68 lb)

Load bearing

1.0 kg (2.20 lb)

Installation

Wall mount

Adjustable Inclination Angle

–60° to 0°

Rotation Angle

0° to 360°

Packaging Dimensions

195 mm × 61 mm × 98 mm (7.68" × 2.40" ×3.86") (L × W × H)

Applicable Model

Please see "Camera Accessories Selection"

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

< 90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic Protection
