KIT/BF4CP-XL/M0508

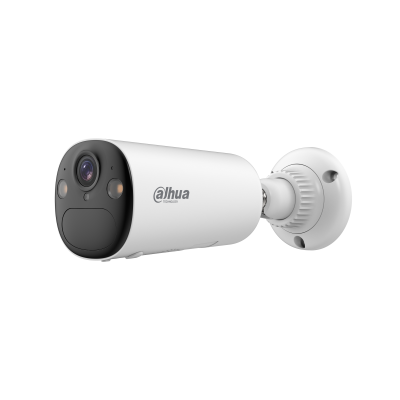

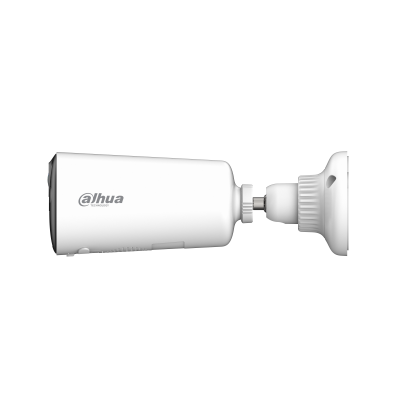

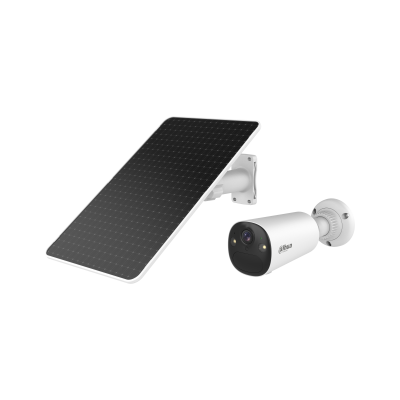

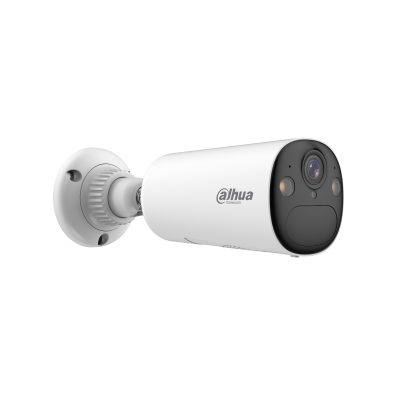

4MP Wi-Fi Battery Bullet Network Camera Solar Monitoring System

Key Points

Sales Enquiry

Datasheet

Specifications

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

Illumination Distance

Up to 15 m (49.21 ft) (IR)
Up to 20 m (65.62 ft) (Warm light)

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0° to 360°
Tilt: -60 °to 0°
Rotation: 0° to 360°

PIR Sensor Distance

12 m (the height of device is 2.5 m, placed horizontally);
8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)

Lens Type

Fixed-focal

Focal Length

2.1 mm

Max. Aperture

F1.6

Field of View

H: 122.5°; V: 66°; D: 144.5°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265

Video Frame Rate

Main stream: 2560 × 1440@(1–15 fps)
Sub stream: 640 × 360@(1–15 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.265: 32 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

Yes

Motion Detection

OFF/ON (4 areas, rectangular)

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM

Network

Wi-Fi

IEEE 802.11a/b/g/n/ac 2.4000–2.4835 GHz & 5.18–5.85 GHz, 2.4 G & 5 G

Wi-Fi Pairing

Bluetooth pairing

Storage

Micro SD card (support max. 512 GB)

Management Software

DMSS

Mobile Client

Android;iOS

General

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

Power Supply

USB (5 VDC±5%, 2 A)

Power Consumption

Ultra power saving mode: 0.008 W
Power saving mode: 0.008 W
AOV mode: 0.2 W
Performance mode: 1.22 W

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP66

Camera Button

Reset Button; Power Button

Casing Material

Plastic

Product Dimensions

186.5 mm × Φ65.0 mm (7.34" × Φ2.56")

Net Weight

0.37 kg (0.82 lb)

Battery

Battery Capacity

32.4 Wh
