P5AS-PV

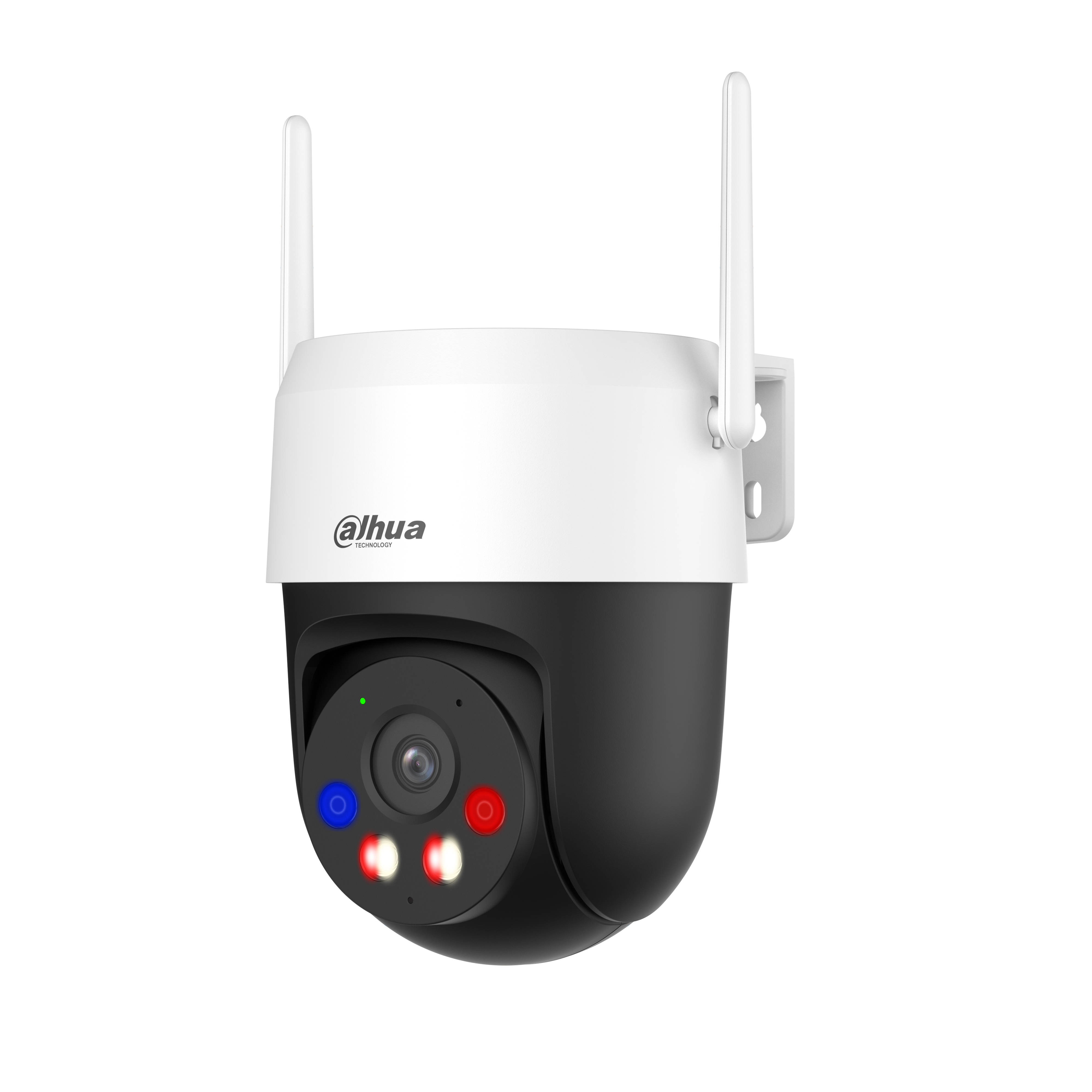

5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

Key Points

Sales Enquiry

Datasheet

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Min. Illumination

0.007 lux@F1.6 (Color, 30 IRE)

0.0007 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0° to 345°
Tilt: 0° to 90°
Rotation: 0° to 345°

Lens Type

Fixed-focal

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 78°; V: 42°; D: 92°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video Frame Rate

Main stream: 2880 × 1620@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 32 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)

Wi-Fi Pairing

Bluetooth pairing

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

Function

Abnormal Sound Alarm

Yes

General

Certifications

Power Supply

12 VDC (±30%)

Power Consumption

Basic: 2 W (12 VDC)
Max.: 14 W (12 VDC) (illuminator intemsity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR)

Operating Temperature

–30 °C to +55 °C (–22 °F to +122 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP66

Camera Button

Reset button

Casing Material

Plastic

Product Dimensions

125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H)
