VCS-SPOE20

Overview Specifications Download Sales Enquiry
VCS-SPOE20
Favourites
VCS-SPOE20

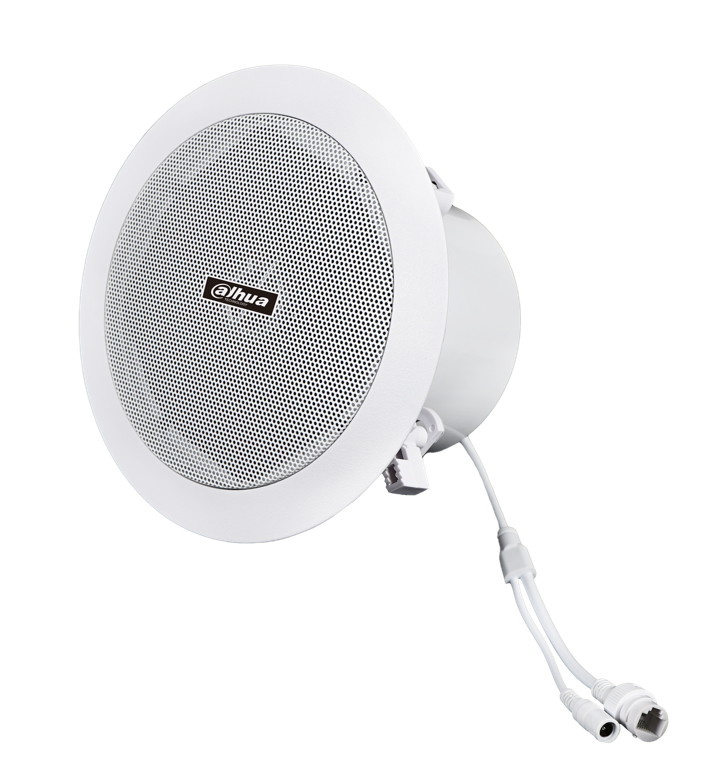

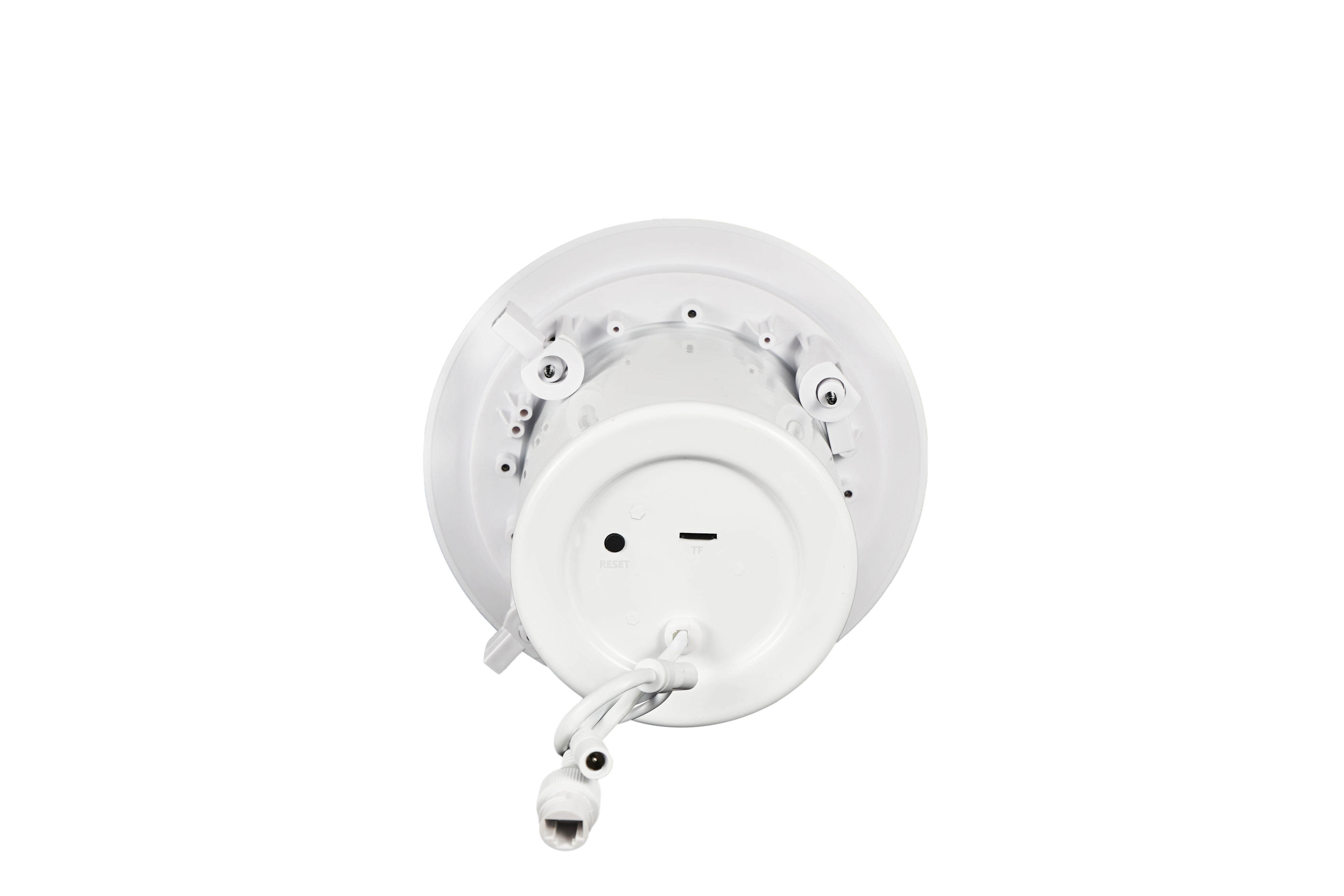

IP In-Ceiling speaker

Key Points
    Rated Power: 20W
    Power Supply Mode: PoE(IEEE 802.3at)/DC24V 2A (Standby)
    Storage: 512MB(expandable)
    Waterproof Class: IP6X
    Material: Aviation aluminum
    Color: White
Sales Enquiry
Datasheet

Specifications

Speaker

Max Sound Pressure Level

80 dB

SNR

≥75 dB

Frequency Response

100 Hz–18 kHz

Coverage Pattern

H: 70°; V: 100°

Speaker Output

20 W

Interface

TF Card Interface

Supports TF card storage

24V Auxiliary Input

24 VDC, POE power supply

Network

Network Port

1 × RJ-45 port

Network Protocol

TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF

General

Audio Protocol

MP3, G.711a/u

Storage

512 MB and TF card

Power Input

PoE+ (IEEE 802.3at), 24 VDC, 1 A (Standby)

Power Consumption

20 W

Operating Temperature

–40 °C to +60 °C (–40 °F to +140°F)

Operating Humidity

60%–95% (RH), non-condensing

Protection Level

IP6X

Certifications

CE EMC, CE LVD

Product Dimensions

203 mm × 203 mm × 132 mm (7.99" × 7.99" × 5.20") (L× W × H)

Packaging Dimensions

235 mm × 235 mm × 170 mm (9.25" × 9.25" × 6.69") (L× W × H)

Net Weight

1.4 kg (3.09 lb)

Gross Weight

1.9 kg (4.19 lb)
