VCS-SH30

Overview Specifications Download Sales Enquiry
VCS-SH30
VCS-SH30
VCS-SH30
Favourites
VCS-SH30

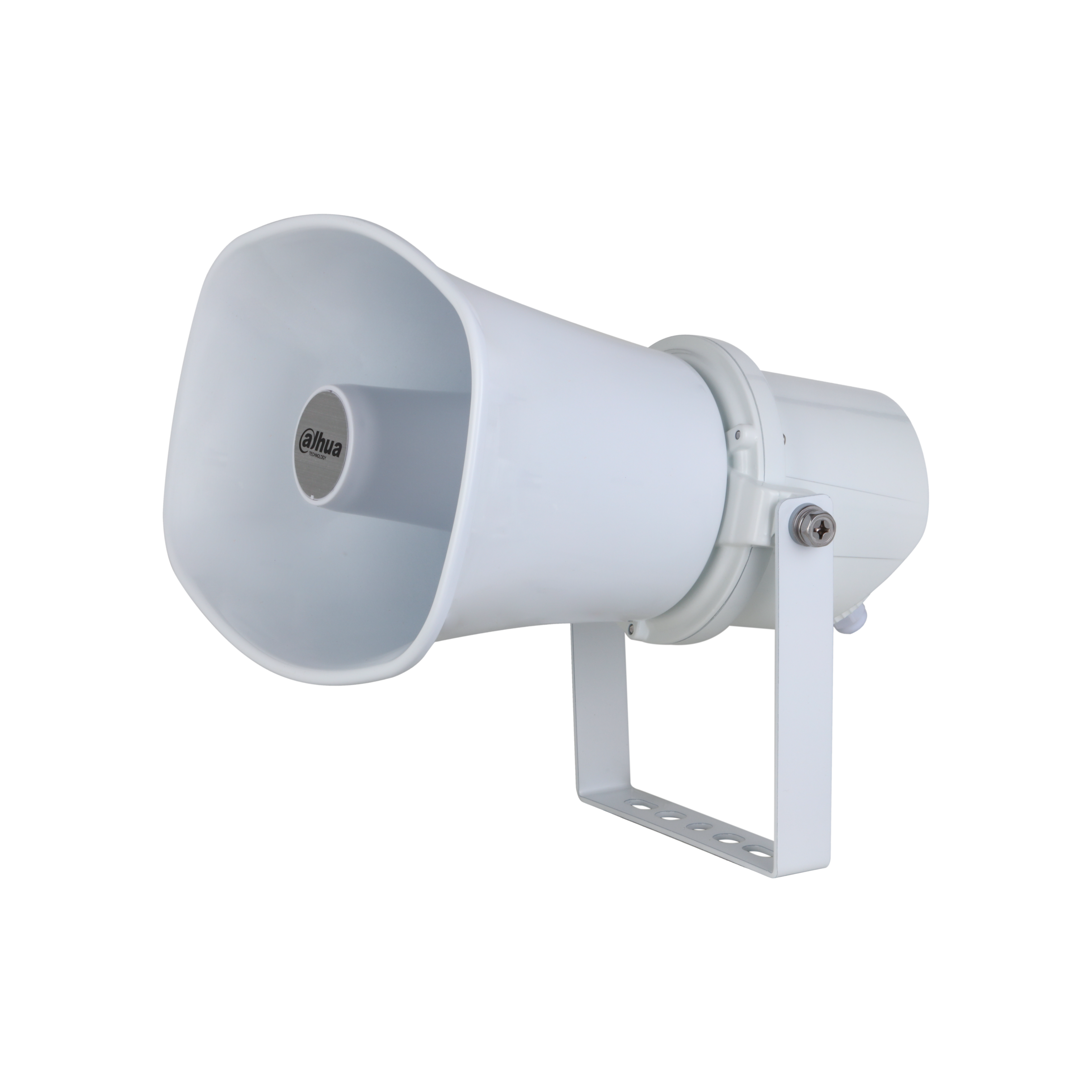

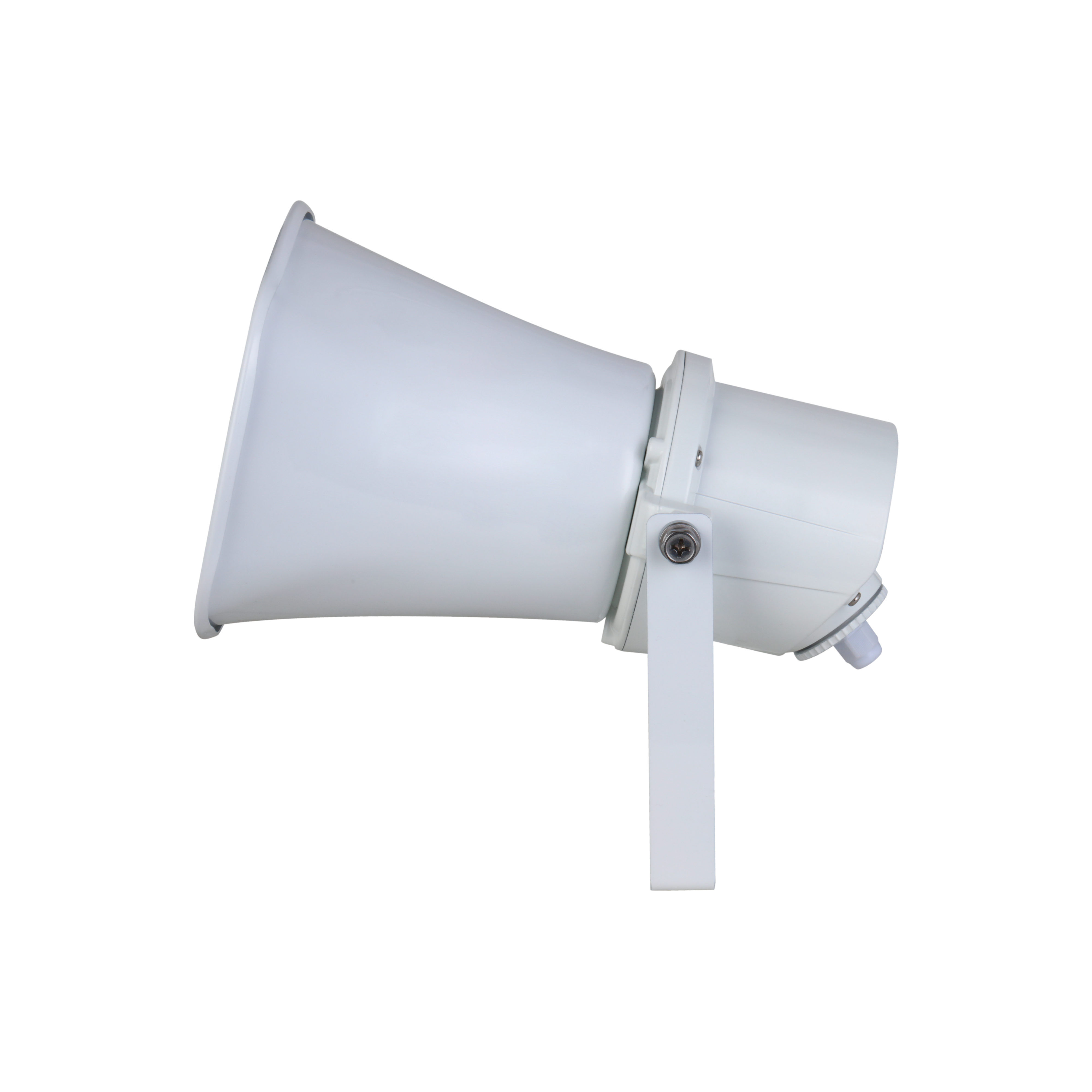

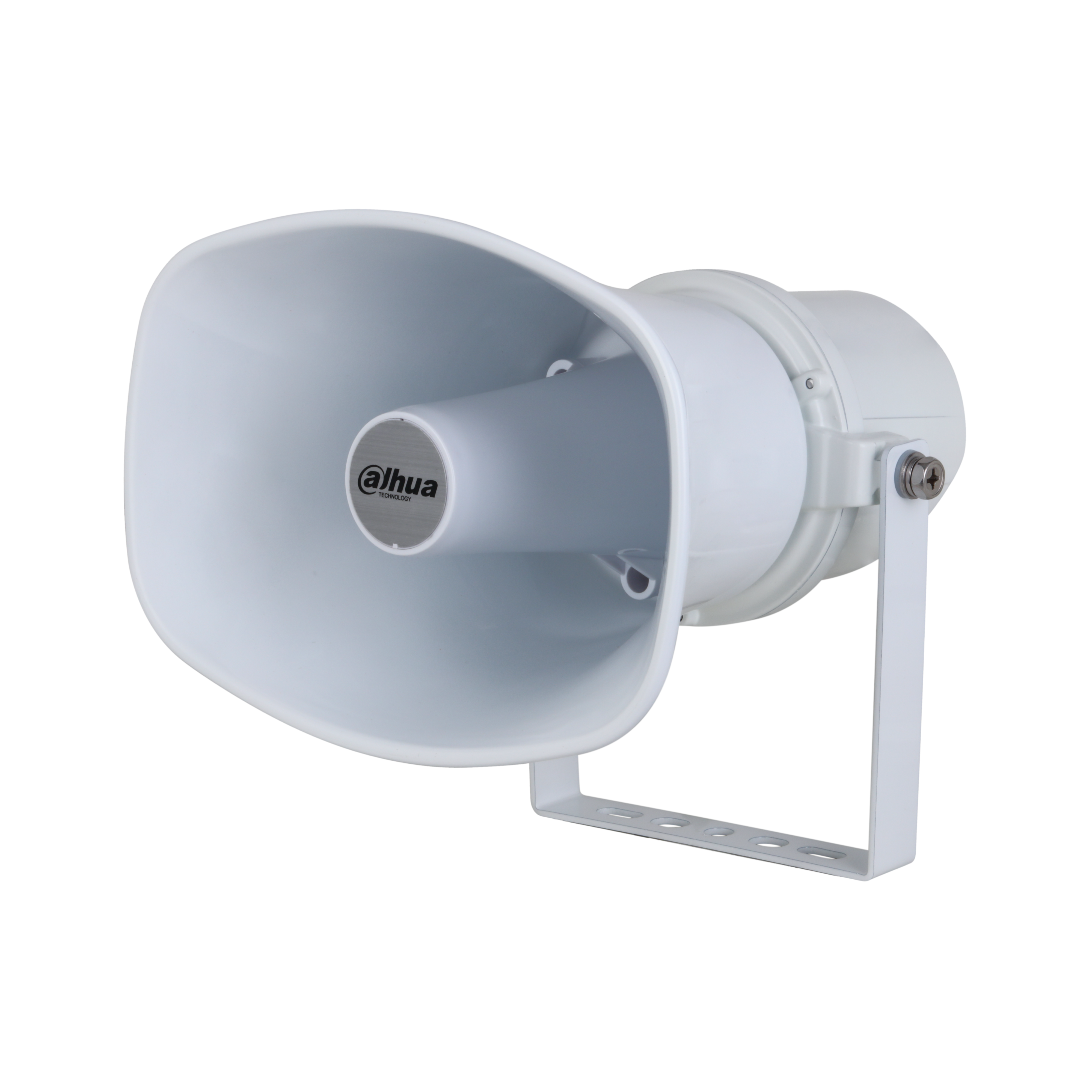

IP Speaker

Key Points
    Rated Power: 15W
    Power Supply Mode: PoE(IEEE 802.3at)/DC24V 2A (Standby)
    Storage: 512MB(expandable)
    Waterproof Class: IP66
    Material: Aviation aluminum
    Color: White
Sales Enquiry
Datasheet

Specifications

Microphone

Type Built-in one microphone switch
Pickup Distance ≥3 m
Frequency Response 50 Hz-12 kHz
MIC Input 15 mV

Speaker

Frequency Response 250 Hz-16 kHz
Max Sound Pressure Level 108 dB
SNR ≥75 dB
Coverage Pattern H: 70°; V: 100°
Speaker Output 15 W

Amplifier

Amplifier Description Built-in 15 W and 8Ω amplifier

Interface

MIC Input Pickup distance ≥ 3 m (9.84 ft), built-in 1 microphone switch
TF Card Interface Supports TF card storage

Network

Network Port 1 × RJ-45 port
Network Protocol TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF

General

Audio Protocol MP3, G.711a/u
Storage 512 MB and TF card
Power Input PoE+ (IEEE 802.3at), 24 VDC, 1 A (Standby)
Power Consumption 15 W
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity 60%–95% (RH), non-condensing
Protection Level IP66
Certifications CE EMC, CE LVD
Product Dimensions 225 mm × 170 mm × 250 mm (8.86" × 6.69" × 9.84") (L × W × H)
Packaging Dimensions 240 mm × 200 mm × 275 mm (9.45" × 7.87" × 10.83") (L × W × H)
Net Weight 1.8 kg (3.97 lb)
Gross Weight 2.5 kg (5.51 lb)
