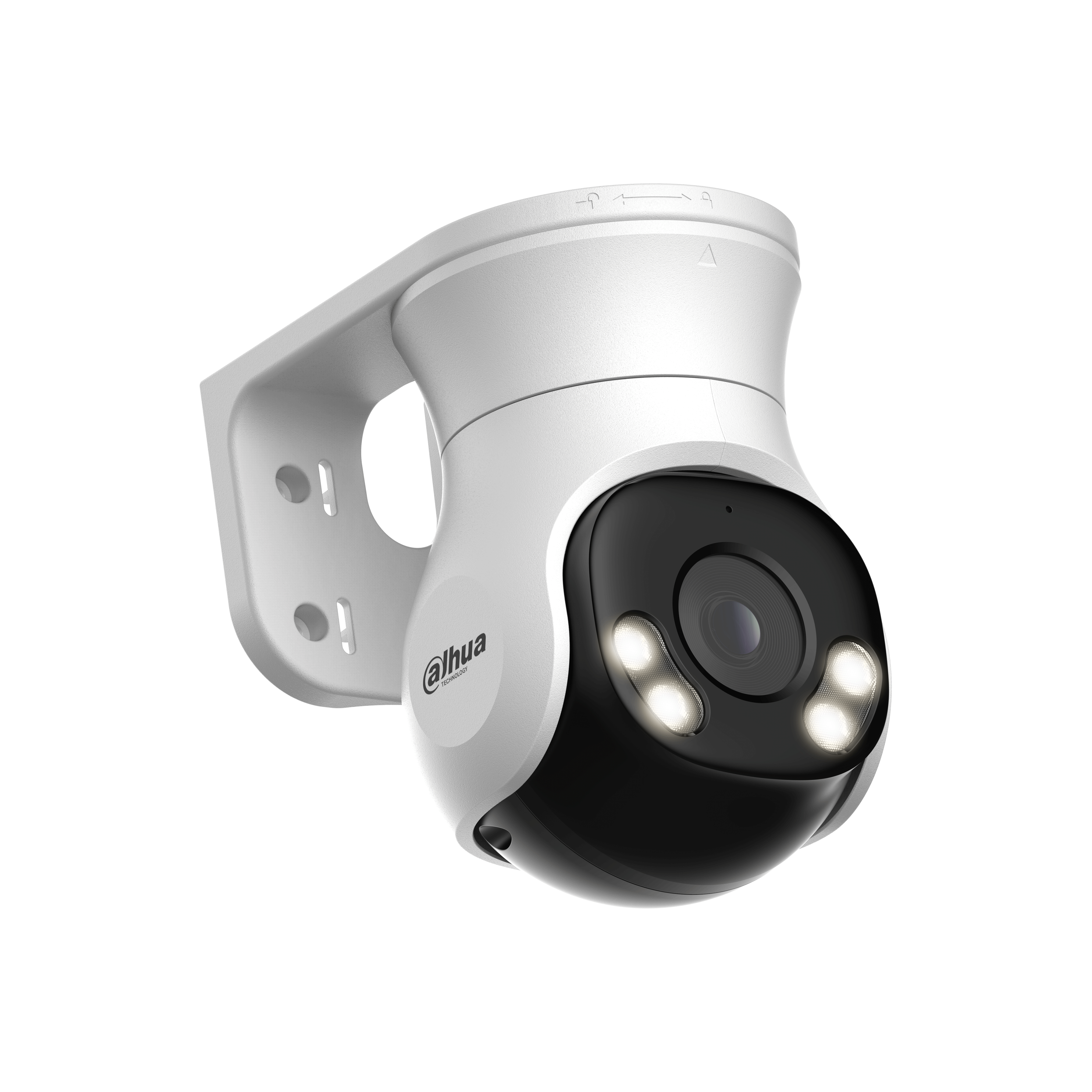

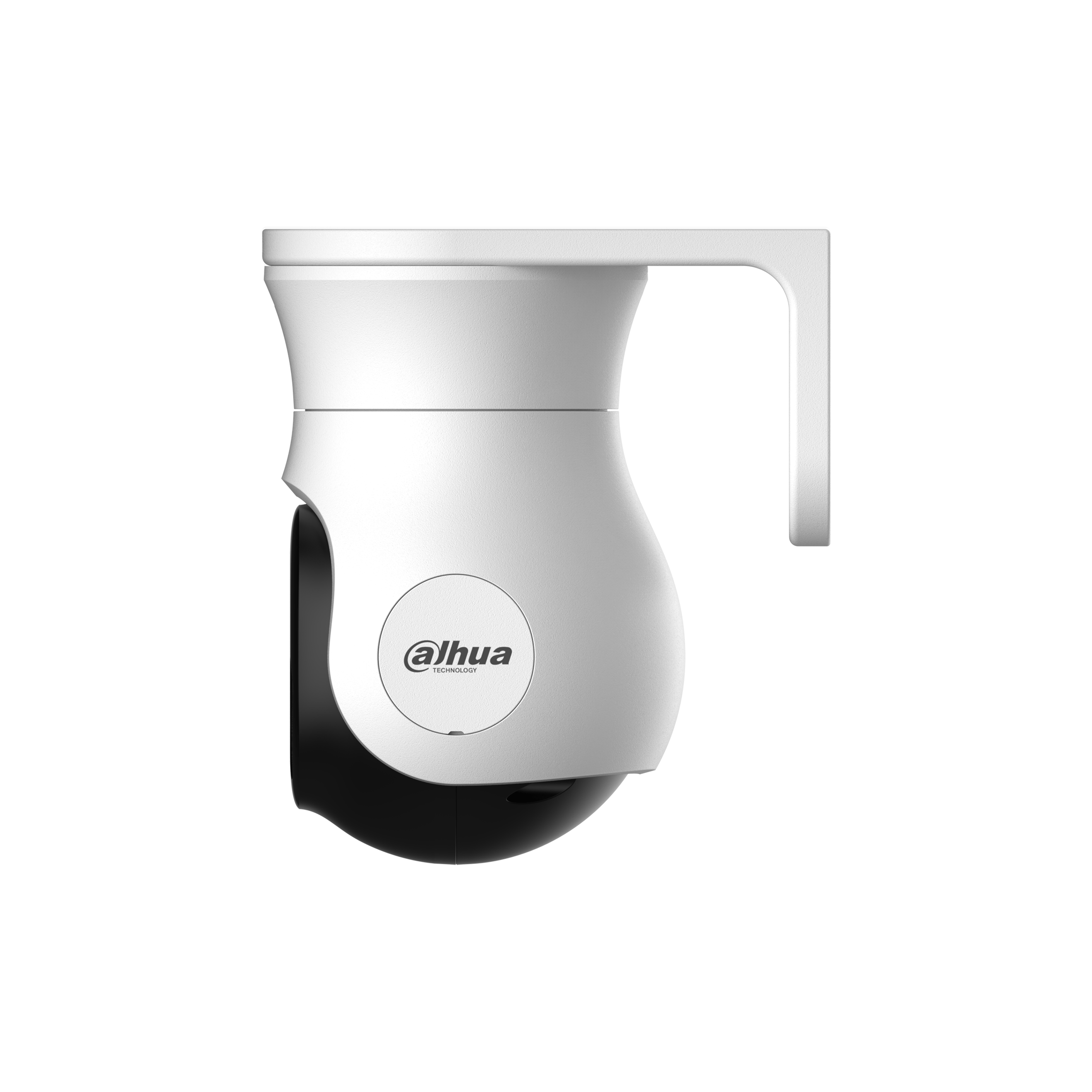

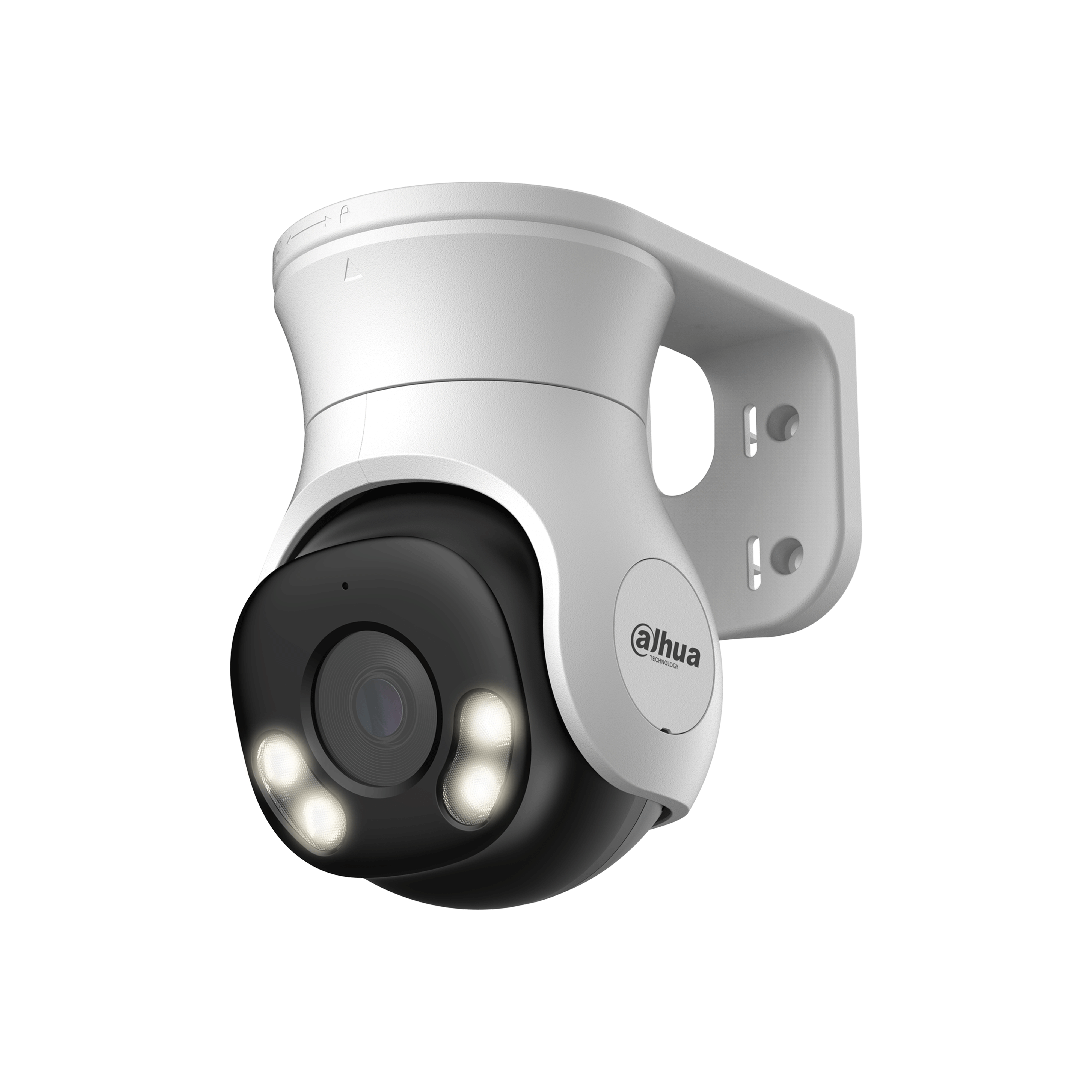

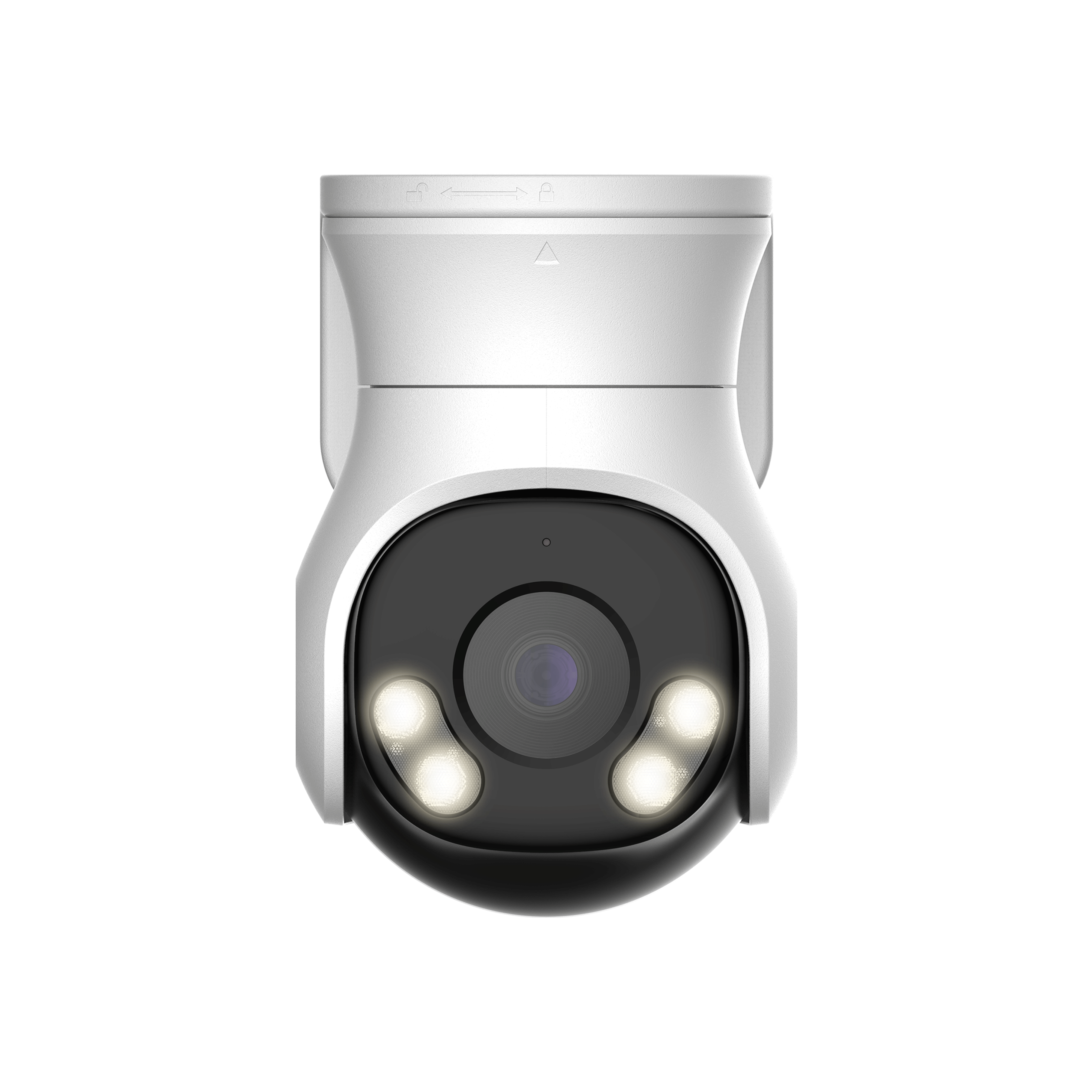

HAC-PT1200A-IL-A

2MP Smart Dual Light HDCVI Fixed-focal PT Camera

Key Points
    • High-Quality Imaging with 1080P Resolution
    • Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
    • 40m Illumination Distance for Superior Camera Image Quality
    • PT：Greater Flexibility with Pan & Tilt Function.
    • Built-In Mic : Enhances Video Assistance with Audio Technology
    • 3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions
    • Time-saving Installation with Quick-to-install Structure
    • IP66 Ratings for Protection Against Harsh Environments
Sales Enquiry
Datasheet

Specifications

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light);4 (IR light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–90°
*DO NOT adjust the angle of the main body or enclosure manually

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m
(135.83 ft)

16.5 m
(42.13 ft)

8.3 m
(27.23 ft)

4.1 m
(13.45 ft)

3.6 mm

50.9 m
(166.99 ft)

20.3 m
(66.60 ft)

10.2 m
(33.46 ft)

5.1 m
(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Manual

Gain Control

Auto;Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 6.1 W (12 V DC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
