Intro Dahua IPC Perimeter Protection Camera ?

The Triple-Sight Perimeter Protection camera is a professional long-range perimeter protection camera, providing users with a detection distance of 140 meters in the daytime through innovative design and various technologies.

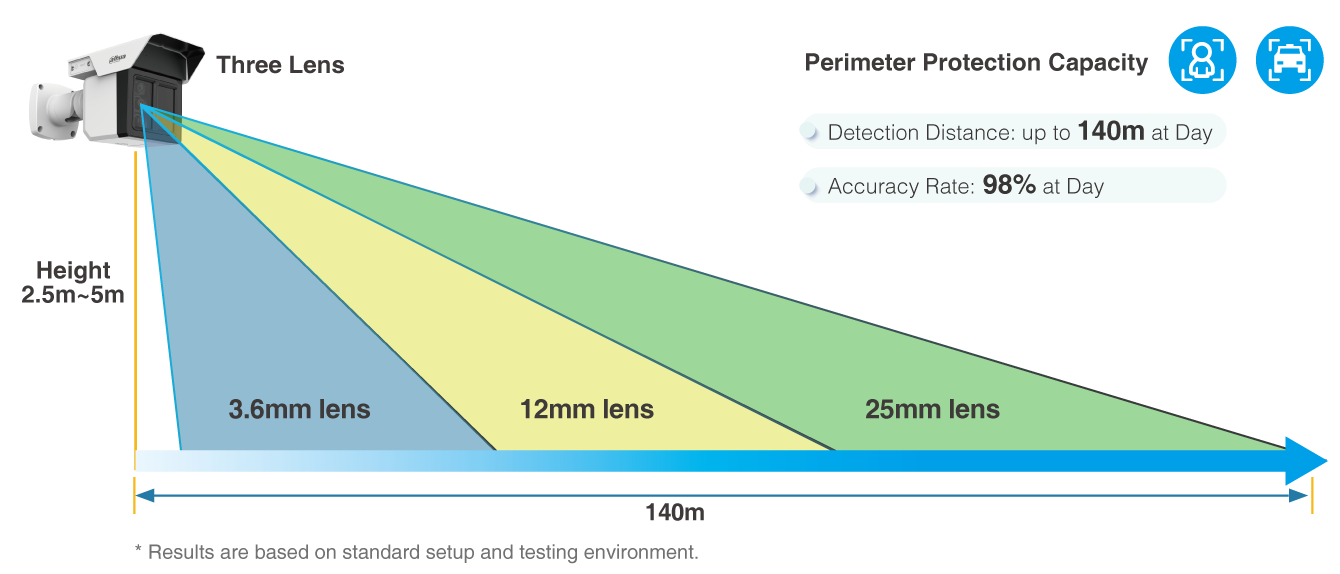

Pain Points

Traditional single lens cameras often have limited coverage. Models with short focal lens can not monitor longer distances. Those with long focal lens can monitor far distances, but the blind spot is large. When monitoring long-range scenes, it is often recommended to add at least 3 traditional cameras, incurring high investment cost.

Easy Usage

Triple-Sight Detection Technology

Using three different lenses and running three Perimeter Protection channels simultaneously, the Large-scale AI Models algorithm automatically detects the optimal target and achieve detection control up to 140 meters in the daytime.

Long-Range Illumination by Area

With illumination control algorithm by area, 8 IR LEDs are used to produce different intensities of fill light for different areas. It fills in the light at a longer distance and ensures uniform brightness at full range, reducing overexposure and underexposure to guarantee clear visibility of targets within the range.

Remove Duplicate Target Technology

Based on spatial information and object features, the target in the camera is calibrated to reduce repeated alarms. It pushes the optimized image with the relatively complete and clearest target.

Easy Configuration

IVS Rules Configuration

The Perimeter Protection (IVS) rules can be easily configured. Users can draw complete IVS rules on the panoramic channel view, and then adjust the rule details on the medium and distant channels.

Easy Installation

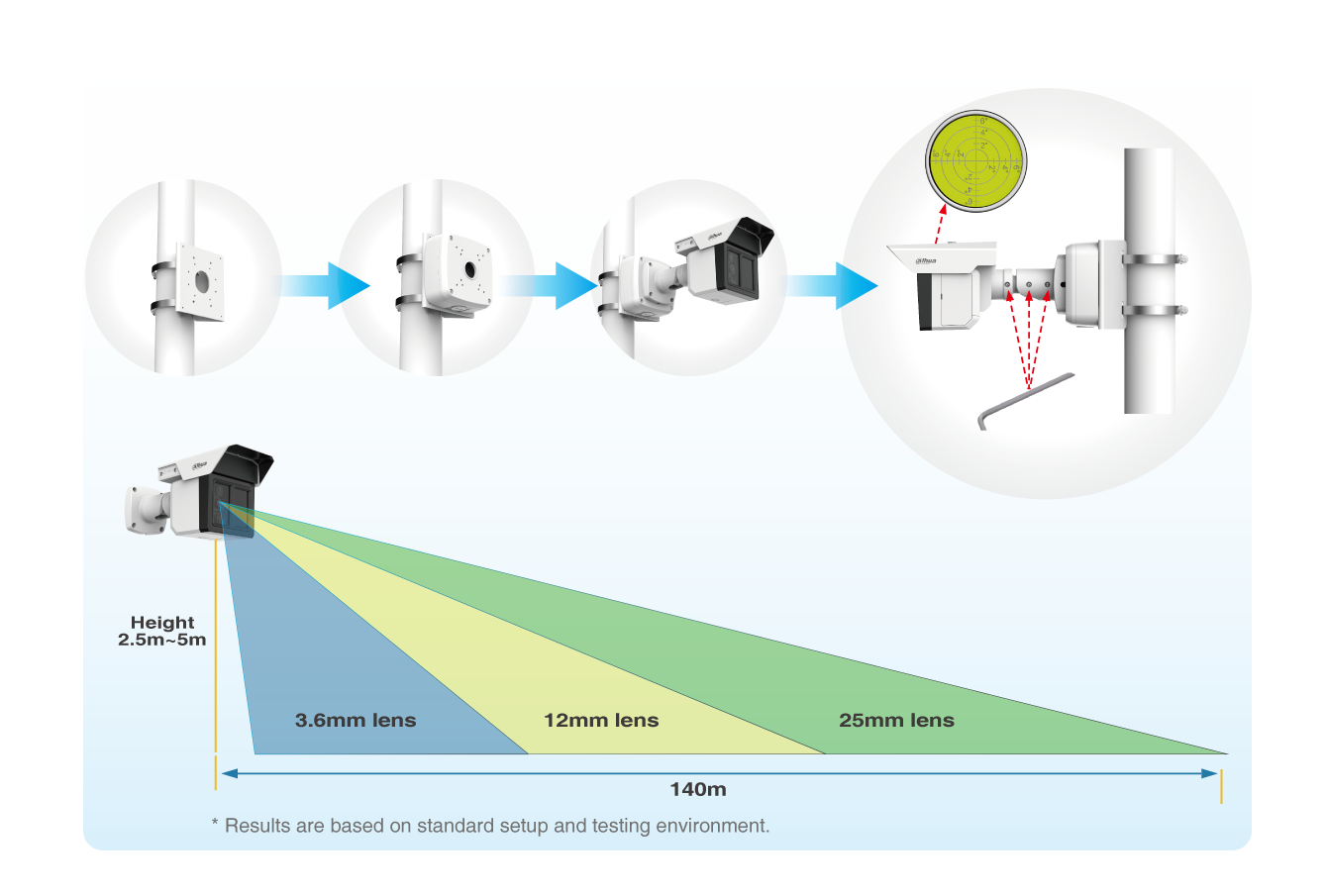

Installation Guide

The camera has an innovative appearance and a unique structure (e.g. built-in gradienter), enabling easy installation.

Micro PTZ

The Micro PTZ can remotely adjust the camera's tilt angle with adjustment precision of 0.1°. It can easily and quickly adjust the installation angle, saving time and effort.
