PFM325D-1210US

Overview Specifications Download Sales Enquiry
Compare Favourites

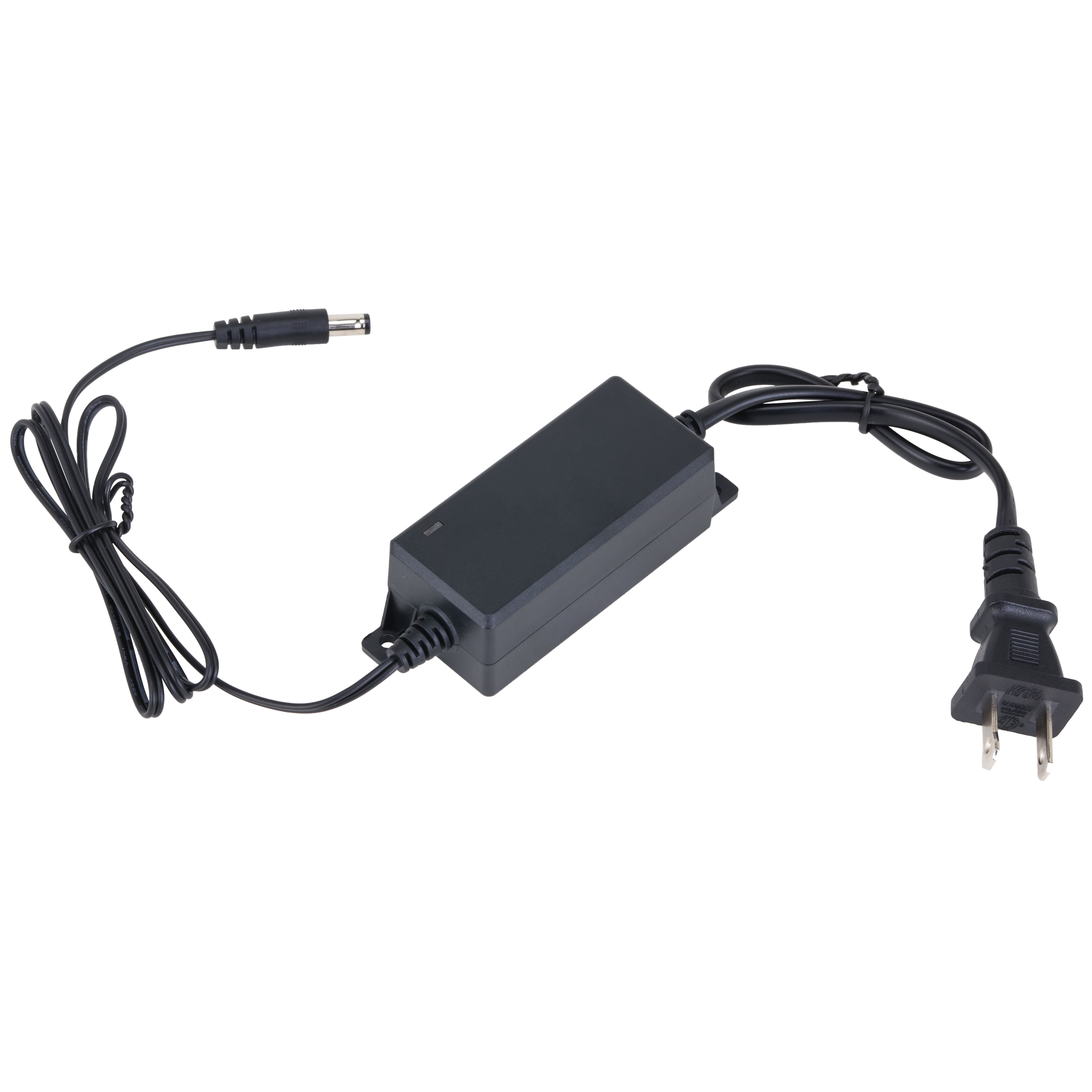

PFM325D-1210US

DC12V 1A Power Adapter

Key Points
    • Supports Desktop Mount, Making it Highly Convenient to Use
    • Shell Flame Resistance V-0 Level
    • Protects Against Overcurrent, Overvoltage, and Short Circuits
    • Efficiency Level: VI
Sales Enquiry
Datasheet

Specifications

Function

Input Voltage

100–240 VAC

Output Voltage

12 V ± 5%

Rated Output Current

1 A

Rated Power

12 W

Power Consumption In Idle

≤0.1 W

Efficiency

≥82.96%

Indicator Light

Green light × 1

Port

Input Port

North American Standard 2 pin plug

Output Plug

Φ5.5 mm × Φ2.1 mm × 10.0 mm (0.22" × 0.08" × 0.39") (OD × ID × L)

Protection

Types of Protection

Protects against overcurrent, overvoltage, short circuits.

Surge Protection Grade

Common mode: ±2 kV

Differentiate mode: ±1 kV

Statics Protection

Air discharge: ±8 kV

Contact discharge: ±6 kV

Structure

Installation

Desktop mount

Product Dimensions

95.0 mm × 34.8 mm × 28.0 mm (3.74" × 1.37" × 1.10")

Appearance Color

Black

Net Weight

0.1 kg (0.22 lb)

Gross Weight

0.115 kg (0. 5 lb)

Packaging Dimensions

72.0 mm × 44.0 mm × 122.0 mm (2.83" ×1.73" × 4.80")

Input Cable Length

350 mm (13.78")

Output Cable Length

800 mm (31.50")

Environment

Operating Temperature

Full load: –20 °C to +40 °C (–4 °F to +104 °F)

80% load: +40 °C to +55°C (+104 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +70 °C (+14 °F to + 158 °F)

Storage Humidity

10%–90% (RH)

Certifications

Certifications

FCC
