PFA162

Overview Specifications Download Sales Enquiry
Compare Favourites

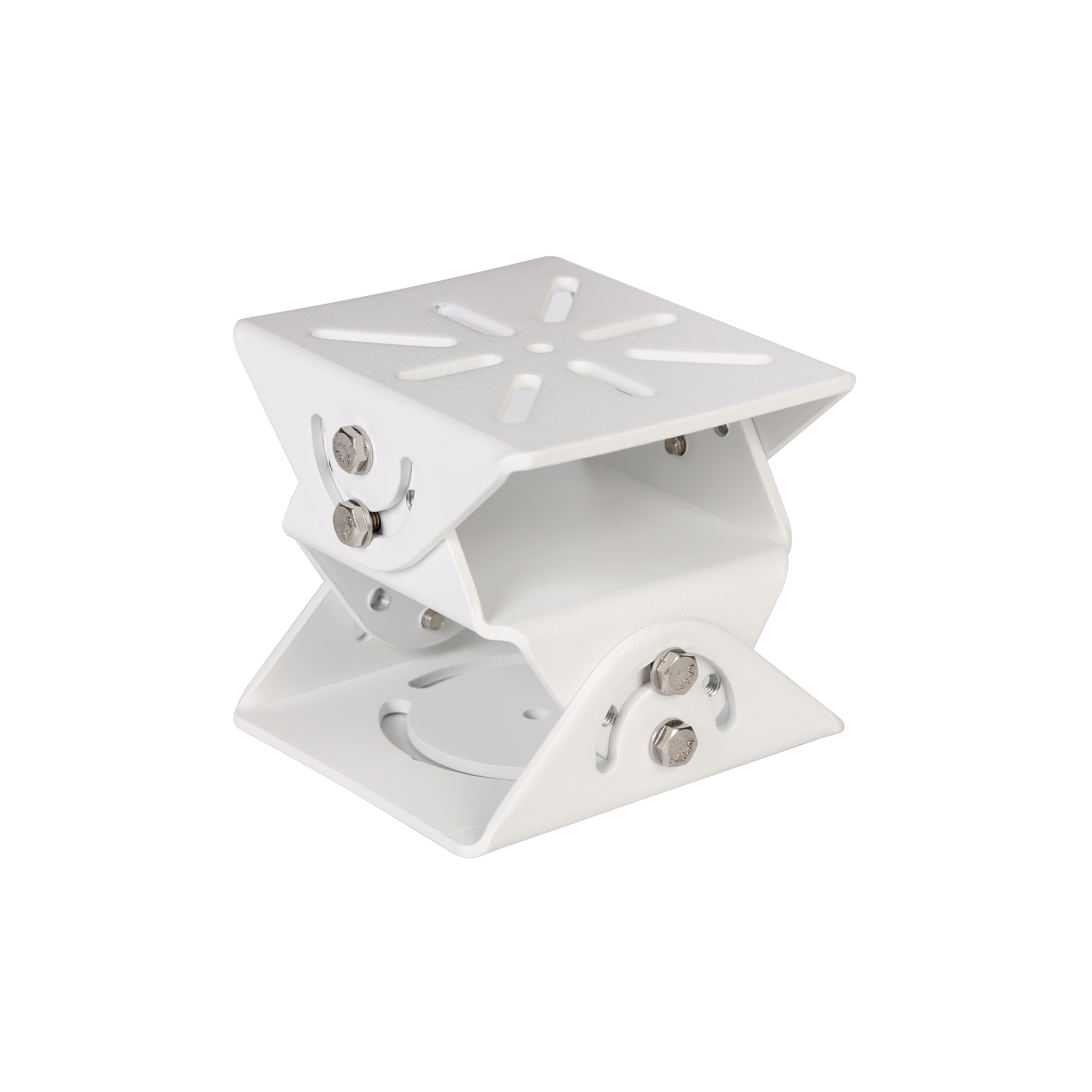

PFA162

Universal Joint

Key Points
    • Built of Aluminum Alloy
    • Suitable for a Variety of Cameras and is Elegant
    • Supports being Adjusted to Multiple Angles to Suit the Needs of Various Installation Locations
Sales Enquiry
Datasheet

Specifications

Structure

Casing Material Aluminum alloy
Product Dimensions 115.0 mm × 115.0 mm × 98.8 mm (4.53" × 4.53" × 3.89") (L × W × H)
Appearance Color White
Net Weight 0.48 kg (1.06 lb)
Gross Weight 0.56 kg (1.23 lb)
Load Bearing 6.0 kg (13.23 lb)
Installation Plane mount
Adjustable Inclination Angle –30° to +30°
Applicable Model Please see "Camera Accessories Selection"
Packaging Dimensions 137 mm × 123 mm × 110 mm (5.39" × 4.84" × 4.33") (L × W × H)

Environment

Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <90% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–90% (RH)
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Basic Protection
