PFB206W

Overview Specifications Download Sales Enquiry
Compare Favourites

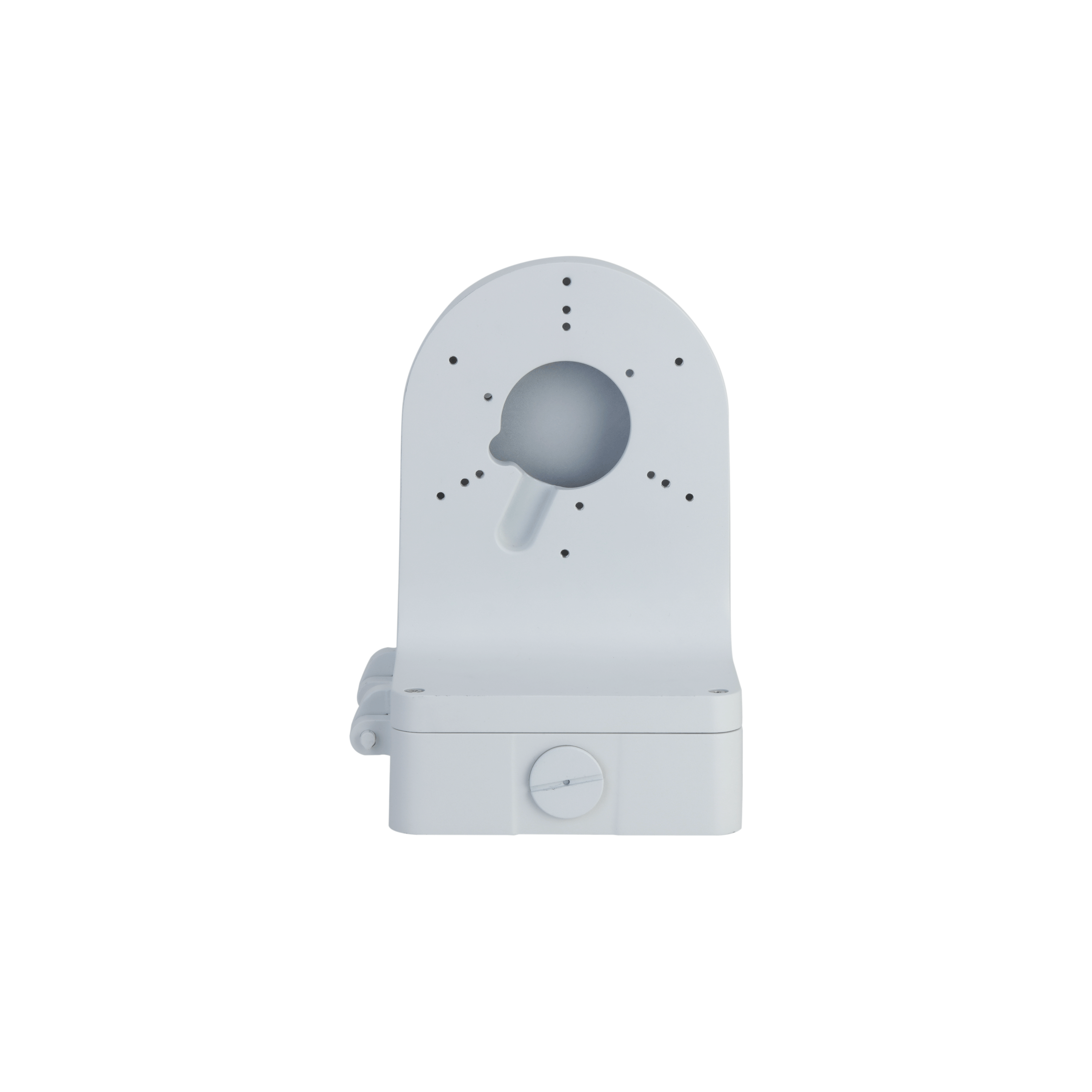

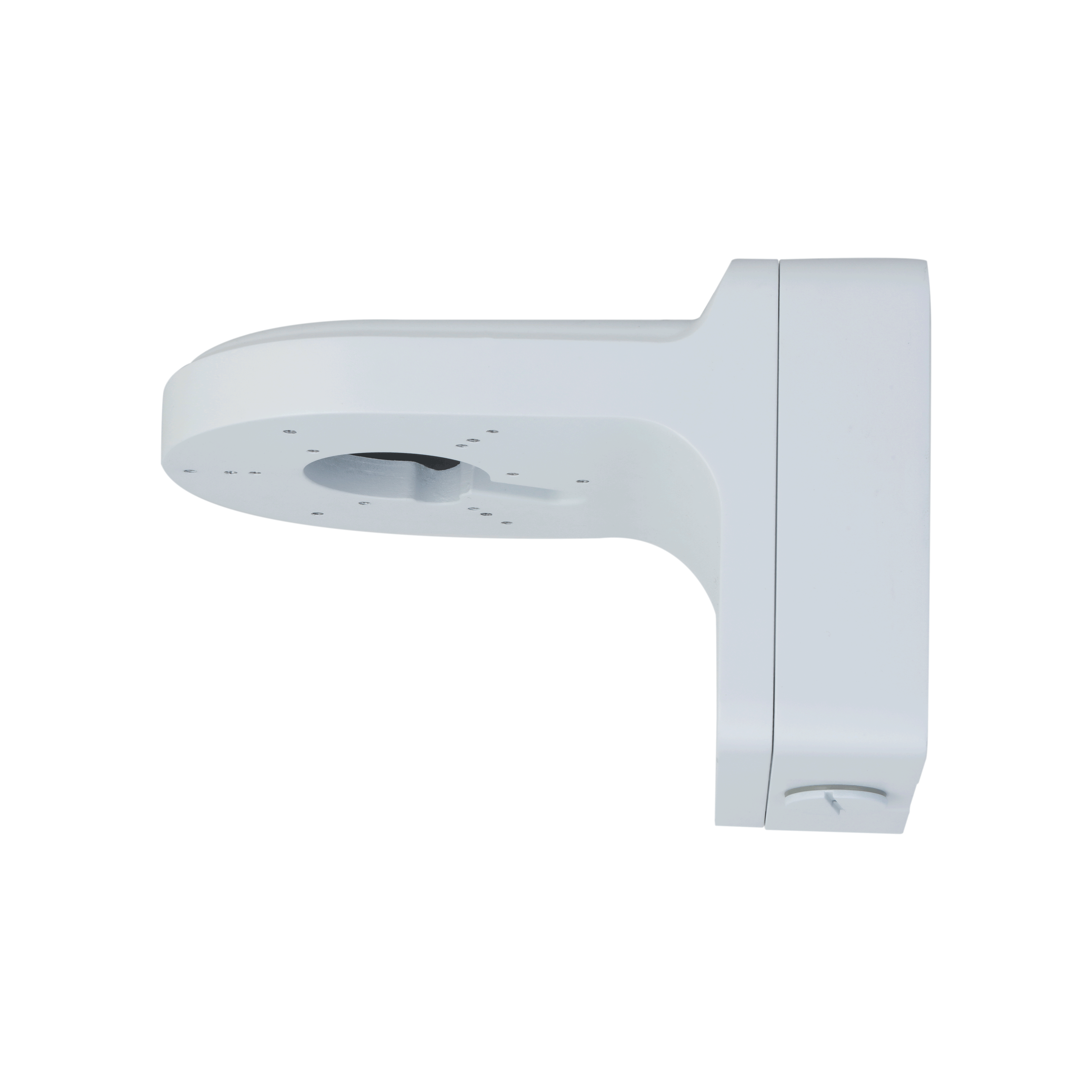

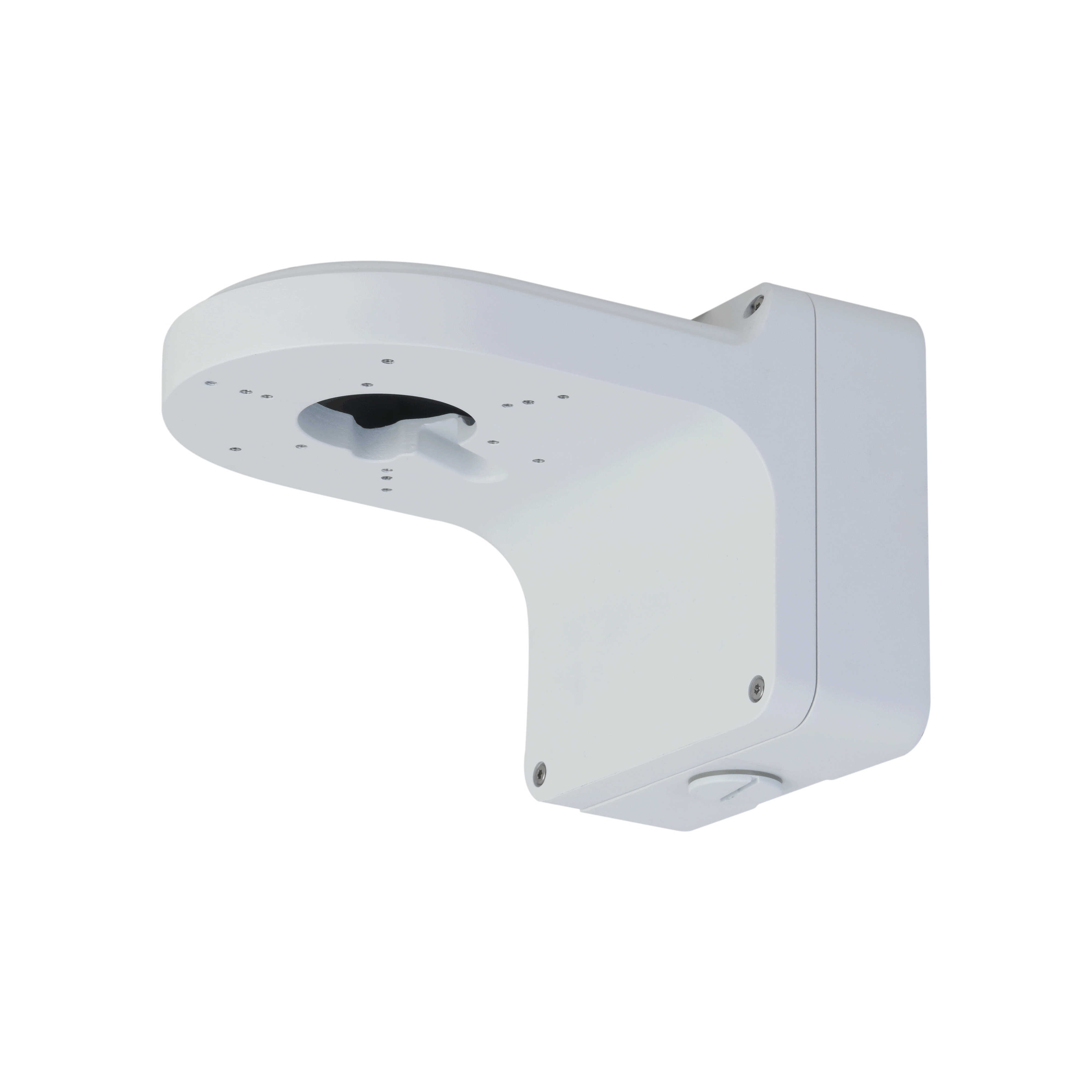

PFB206W

Wall Mount Bracket

Key Points
    • Built of Aluminum Alloy and is Cost-Effective
    • Suitable for a Variety of Cameras and is Elegant
Sales Enquiry
Datasheet

Specifications

Structure

Material

Aluminum alloy

Product Dimensions

222.0 mm × 160.7 mm × 144.4 mm (8.66" × 6.33" × 5.68") (L × W × H)

Appearance Color

White

Net Weight

1.1 kg (2.42 lb)

Gross Weight

1.5 kg (3.31 lb)

Load Bearing

3.0 kg (6.61 lb)

Installation

Wall mount

Screw Thread Type

G 3/4

Applicable Camera

Please see "Accessory Selection"

Packaging Dimensions

219.0 mm × 218.0 mm × 275.0 mm (8.62" × 8.56" × 10.83") (L × W × H)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic protection
