PFA138

Overview Specifications Download Sales Enquiry
PFA138
PFA138
Compare Favourites
PFA138

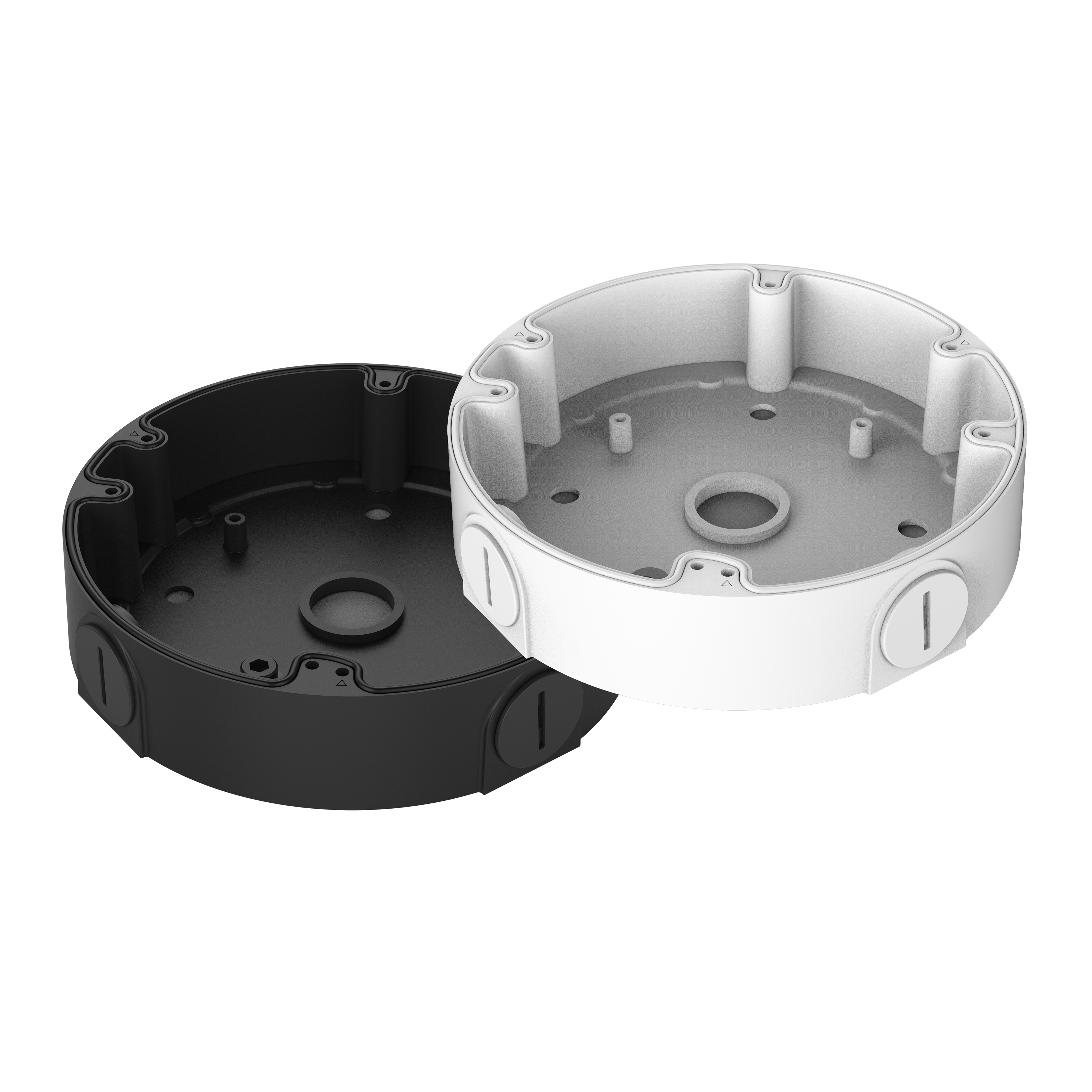

Junction Box

Key Points

    > Built of aluminum alloy.

    > Matched with particular cameras, beautiful and elegant designed.

    > Safety rope hook attached, secure and reliable


Sales Enquiry
Datasheet

Specifications

Structure

Casing Material

Aluminum alloy

Product Dimensions

Φ160.9 mm × 37.0 mm (Φ6.34" × 1.46")

Appearance Color

White

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.60 kg (1.32 lb)

Load bearing

3.0 kg (6.61 lb)

Installation

Junction mount

Screw Thread Type

G3/4

Packaging Dimensions

177 mm × 52 mm × 177 mm (6.97" × 2.05" × 6.97") (L × W × H)

Applicable Model

Please see "Camera Accessories Selection"

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

< 90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic Protection
