PFB301C

Overview Specifications Download Sales Enquiry
Compare Favourites
PFB301C

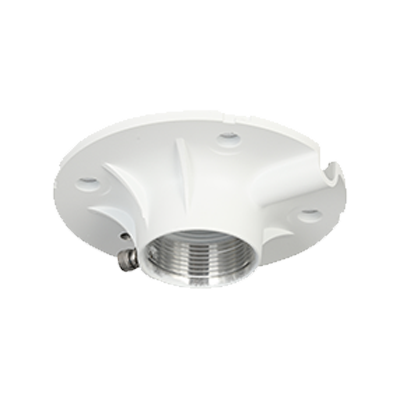

Ceiling Mount Bracket

Key Points
    • Aluminium Alloy
    • Convenient Installation
    • Simple and Elegant Design
    • Wires in the Bracket
    • 8-Inch Ball, Need to be Used with Mount Adapter
Sales Enquiry
Datasheet

Specifications

Model

Model

DH-PFB301C

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

< 90% (RH)

Structure

Material

Aluminum alloy

Installation

Ceiling Mount

Dimensions

φ128.8 × 35.5 mm(5.07" ×1.40")(D × H)

Net Weight

0.21 kg (0.46 lb)

Load bearing

10.0 kg ( 22.04 lb)

Color

White

Applicable Camera

SD8A and below

Package Information

Type

Quantities

Ceiling Mount Bracket

1

S5.0 wrench

1
