ASM101A

Overview Specifications Download Sales Enquiry
ASM101A
ASM101A
Compare Favourites

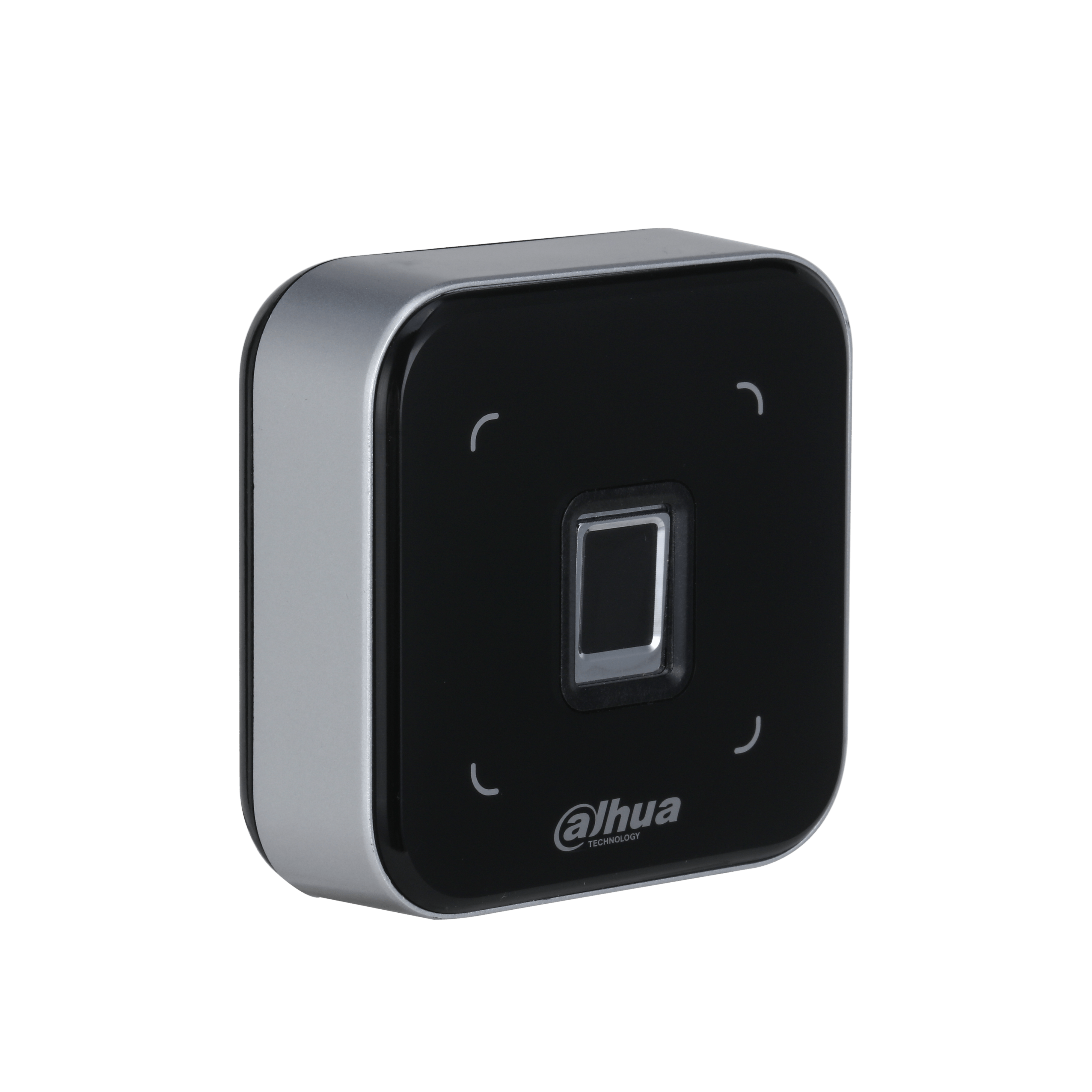

ASM101A

Fingerprint Enrollment Reader

Key Points
    • Fingerprint and Card Enrollment Reader
    • USB Communication
    • Plug and Play
    • Collect IC card (13.56MHz), ID card(125KHz) and Fingerprint
Sales Enquiry
Datasheet

Specifications

Basic

Product Type

Capacitive fingerprint enrollment reader

Buzzer

Yes

Casing

PC/acrylic panel

Function

Communication Mode

ID card; IC card (Mifare card)

Prompt of Succeeded in Issuing Card

Card issuer flashes green

Performance

IC Card Encryption

Yes

Card Reading Frequency

13.56MHz/125KHz

Card Issuing Distance

0 cm–5 cm (0"–0.20")

Fingerprint Sensor Type

Capacitive fingerprint sensor

Fingerprint Recording Time

1800 ms

General

Power Supply

5V 0.5A DC

Power Consumption

Standby ≤ 1.0W, working ≤ 1.7W

Product Dimensions

70 mm × 70 mm × 26 mm (2.76" × 2.76" × 1.02") (L × W × H)

Packaging Dimensions

110 mm × 97 mm × 90 mm (4.33" × 3.82" × 3.54")

(L × W × H, 1 in inner carton)

578 mm × 313 mm × 204 mm (22.76" × 12.32" × 8.03")

(L × W × H, carton)

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor

Gross Weight

0.17 kg (0.37 lb)

Installation

Desk mount

Certifications

CE; FCC
