IPC-MFW7449Y-Z7-T44

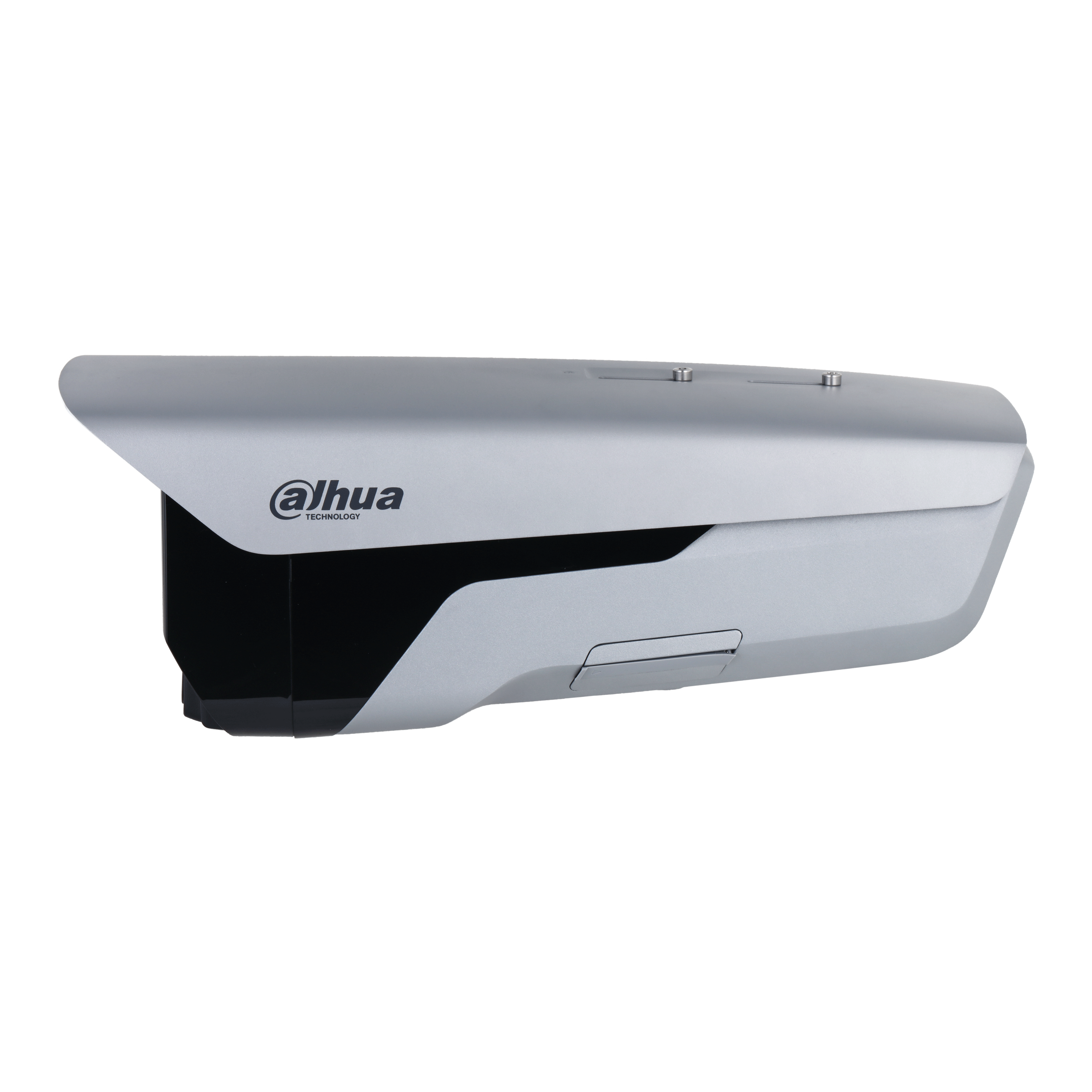

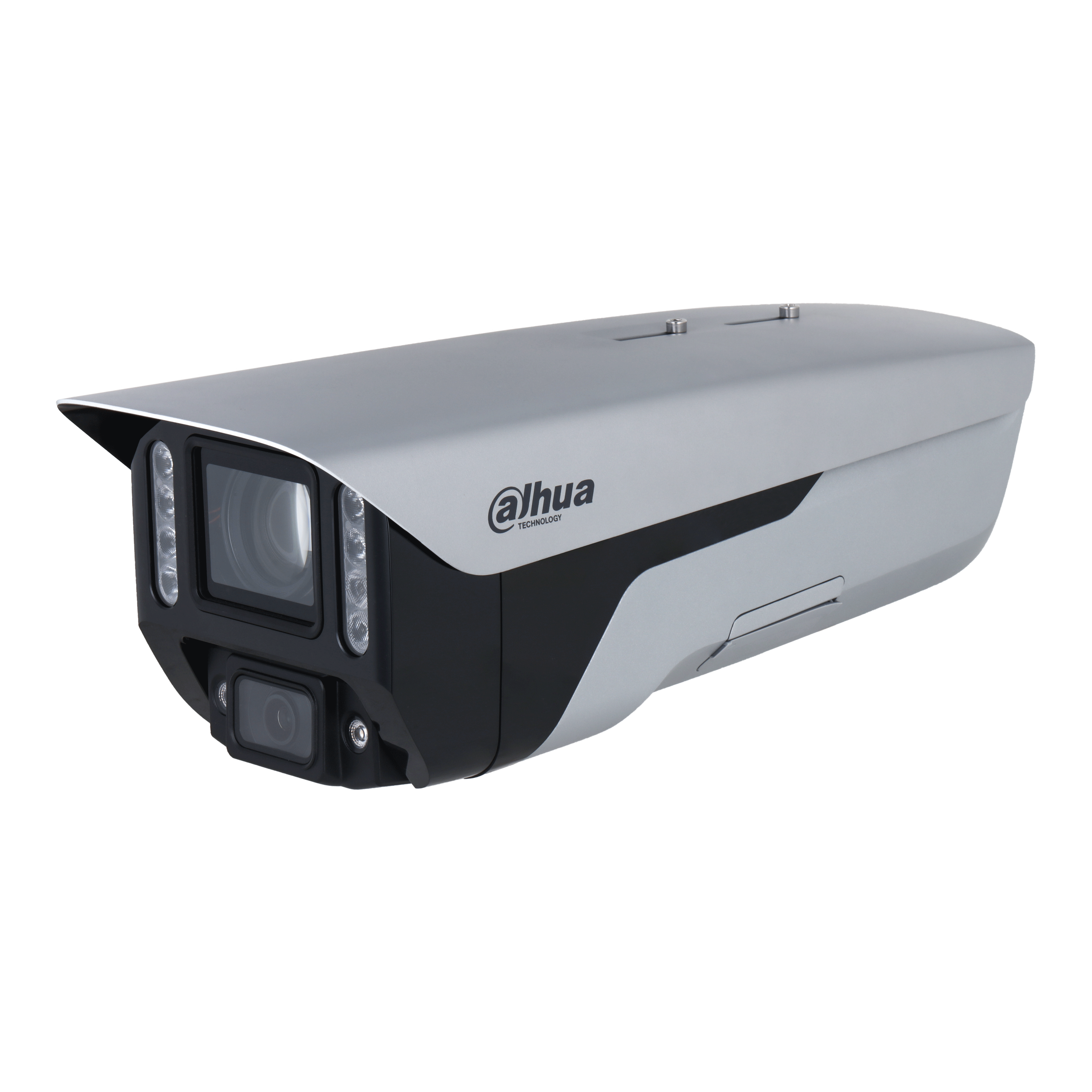

4+4MP Dual-Sight Polarlight Bullet WizMind Network Camera

Key Points

Sales Enquiry

Datasheet

Specifications

Camera

Image Sensor

Channel 1: 1/1.8" CMOS
Channel 2: 1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

8 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:

0.0004 lux@F1.2(Color,30IRE)

0.0001 lux@F1.2(B/W,30IRE)

0 lux (Illuminator on)

Channel 2:

0.0005 lux@F1.6(Color,30IRE)

0.0002 lux@F1.6(B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

Channel 1: 150 m (492.13 ft) (IR); 80 m (262.47 ft) (warm light)

Channel 2: 120 m (393.70 ft) (IR); 80 m (262.47 ft) (warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

Channel 1: 8 (illuminator with dual light fusion)

Channel 2: 2 (illuminator with dual light fusion)

Pan/Tilt/Rotation Range

Channel 1: Tilt: ±5°; Pan:±13°
Channel 2: Tilt: ±15°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Module

Focal Length

Channel 1: 8–56 mm
Channel 2: 8–32 mm

Max. Aperture

Channel 1: F1.2
Channel 2: F1.6

Field of View

Channel 1: H: 41°–9°; V: 23°–5°; D: 47°–11°
Channel 2: H: 42°–15°; V: 23°–9°; D: 49°–17°

Iris Control

Channel 1: Auto

Channel 2: Auto

Iris Control Type

Channel 1: DC-Iris

Channel 2: DC-Iris

Close Focus Distance

Channel 1: 1 m–2 m (3.28 ft–6.56 ft)
Channel 2: 3 m–5.5 m (9.84 ft–18.04 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Channel1:

151 m (495.41 ft)

60 m

(196.85 ft)

30 m

(99.41 ft)

15 m

(49.54 ft)

640 m (2099.74 ft)

256 m

(839.90 ft)

128 m

(419.95 ft)

64 m

(209.97 ft)

Channel2: W

147 m (482.28 ft)

59 m

(193.57 ft)

29 m

(95.14 ft)

14 m

(45.93 ft)

395 m (1295.93 ft)

158 m

(518.37 ft)

79 m

(259.19 ft）

39 m

(127.95 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.

People Counting

Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management

Crowd Distribution Map

Crowd distribution map; global people counting; people counting in area

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.

Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.

Non-motor vehicle attributes: type, color, number of people, top type and color, hat.

Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;Smart H.264+

Video Frame Rate

Channel 1:
Main stream: 2688 × 1520@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
Channel 2:
Main stream: 2688 × 1520@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

Channel 1/ Channel 2: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

Channel 1:
H.264: 32 kbps–15872 kbps
H.265: 12 kbps–9472 kbps
Channel 2:
H.264: 32 kbps–15872 kbps
H.265: 12 kbps–9472 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Time-Division Exposure

Yes

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723;

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; face recognition; video metadata; crowd density

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Interoperability

ONVIF (Profile S/Profile G/ Profile T); CGI

User/Host

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

With plug-in:
IE: IE9 and later
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later
Without plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Management Software

DSS Pro; DMSS

Mobile Client

iOS; Android

Function

Defog (Glass Heating)

Yes

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485
