PFB205W-E

Overview Specifications Download Sales Enquiry
Compare Favourites
PFB205W-E

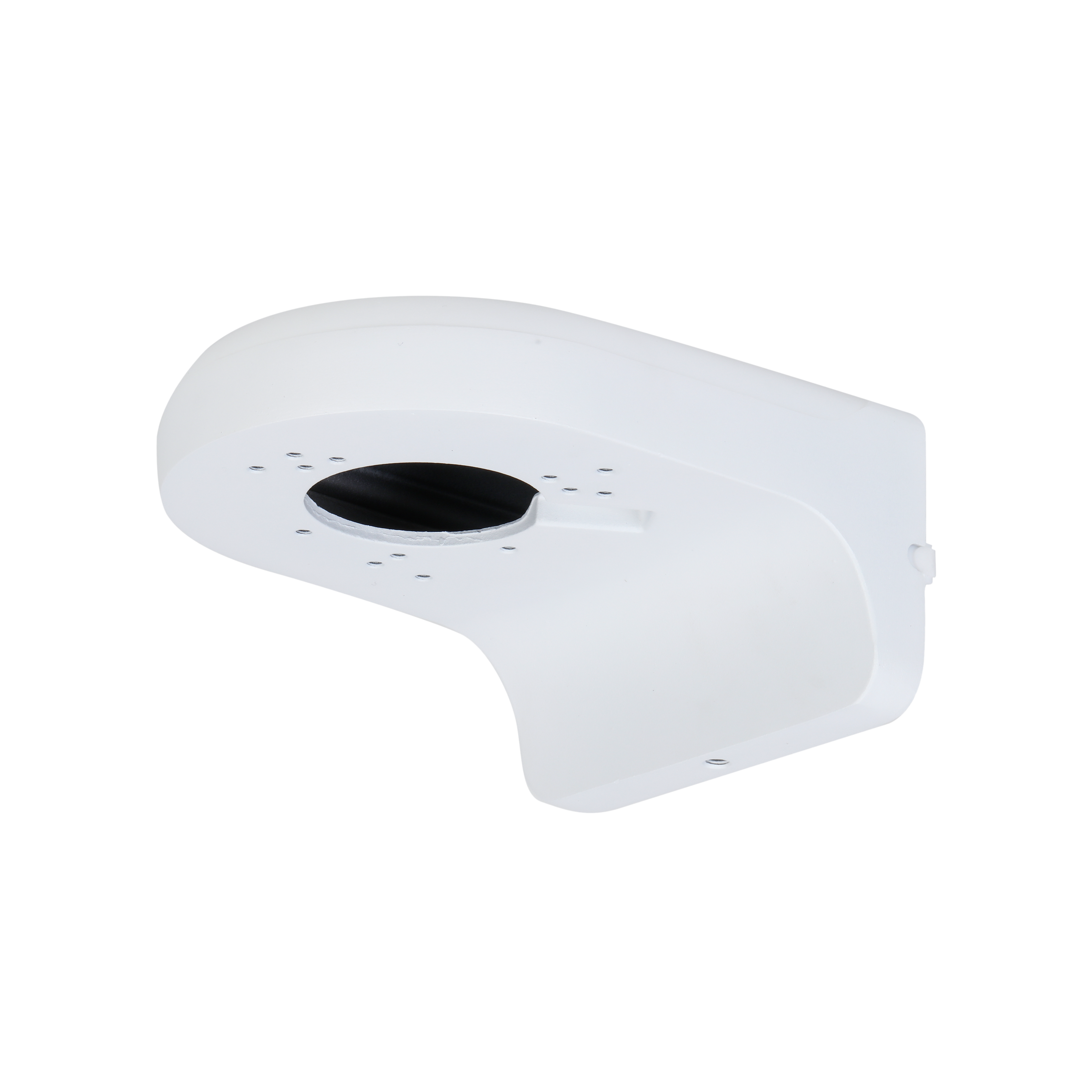

Wall Mount Bracket

Key Points
    Wall Mount Bracket
Sales Enquiry
Datasheet

Specifications

Structure

Material

Aluminum alloy

Dimensions

161.6 mm × 125.6 mm × 76.0 mm (6.36" × 4.94" × 2.99") (L × W × H)

Color

White

Net Weight

0.49 kg (1.08 lb)

Gross Weight

0.56 kg (1.23 lb)

Load Bearing

2.0 kg (4.41 lb)

Installation

Wall mount

Applicable Camera

Please see "Accessory Selection"

Product Dimensions

128.0 mm × 81.0 mm × 170.0 mm (5.04" × 3.19" × 6.69") (L×W×H)

Packaging Dimensions

427.0 mm × 272.0 mm × 363.0 mm (16.81" × 10.71" × 14.29") (L × W × H)

Packaging Method

20 pcs in each carton

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

< 90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)
