PFA133-E

Overview Specifications Download Sales Enquiry
Favourites

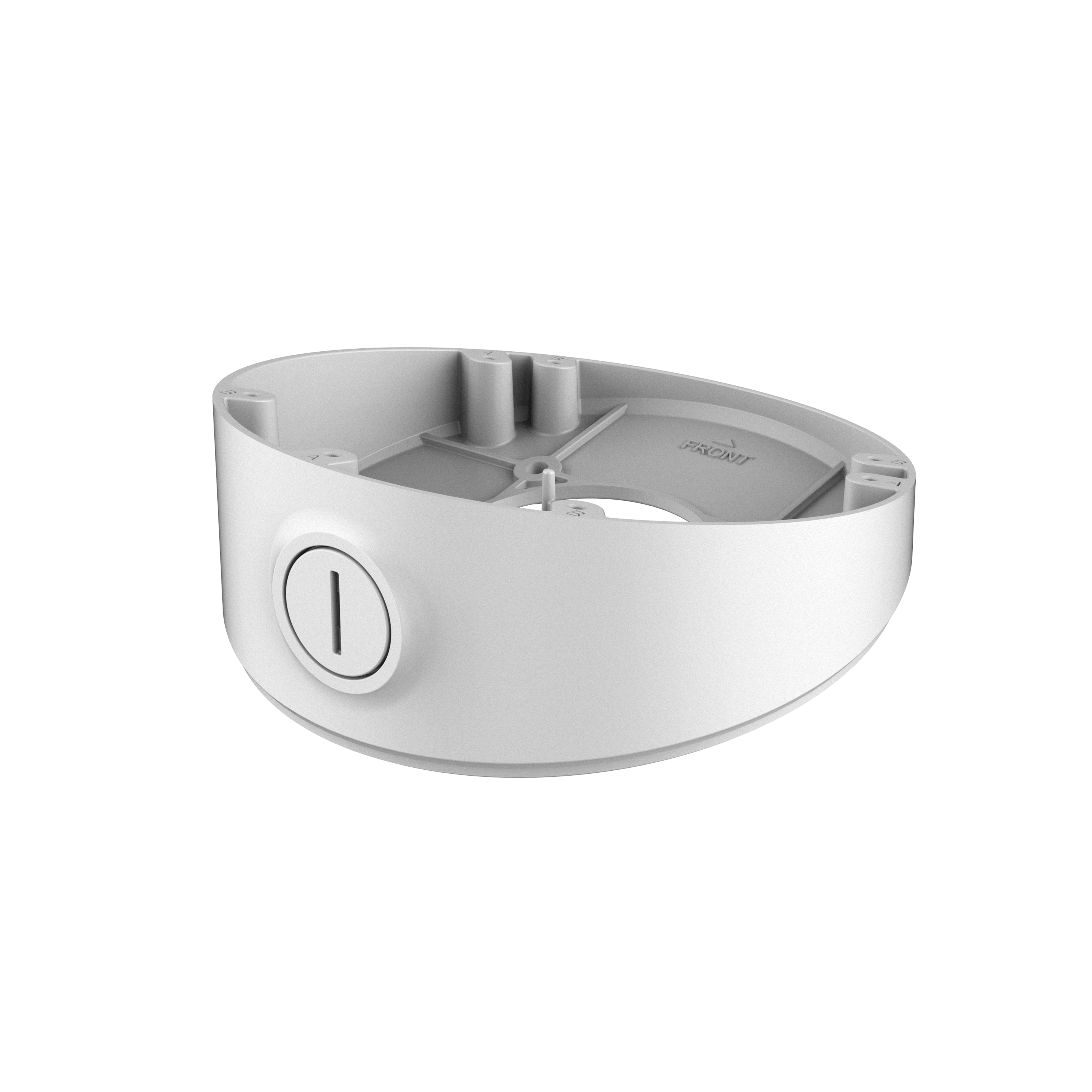

PFA133-E

Junction Box

Key Points
    • Aluminum Alloy Material, Cost-Effective
    • Dedicated for Particular Cameras, Beautiful and Well Designed
    • Cable Junction Inside Box
    • Support Bottom and Side Outlet
Sales Enquiry
Datasheet

Specifications

Ordering Information

Type

Part Number

Description

Camera mount

DH-PFA133-E

Junction box

Technical Specification

Model

DH-PFA133-E

Standard

Q/DXJ 064-2018

Material

Aluminum alloy

Dimensions

Ф159.0 mm × 66.1 mm (Ф6.26" × 2.60")

Pipe Thread

G3/4"

Weight

0.36 kg (0.81 lb)

Load Bearing

3.0 kg (6.61 lb)

Operating Temperature

–40°C to 60°C (–40°F to 140°F)

Operating Humidity

<90% (RH)

Inclined Angle

20°

Color

White

Applicable Model

Please see "Accessory Selection"
