PFA117

Overview Specifications Download Sales Enquiry
Compare Favourites

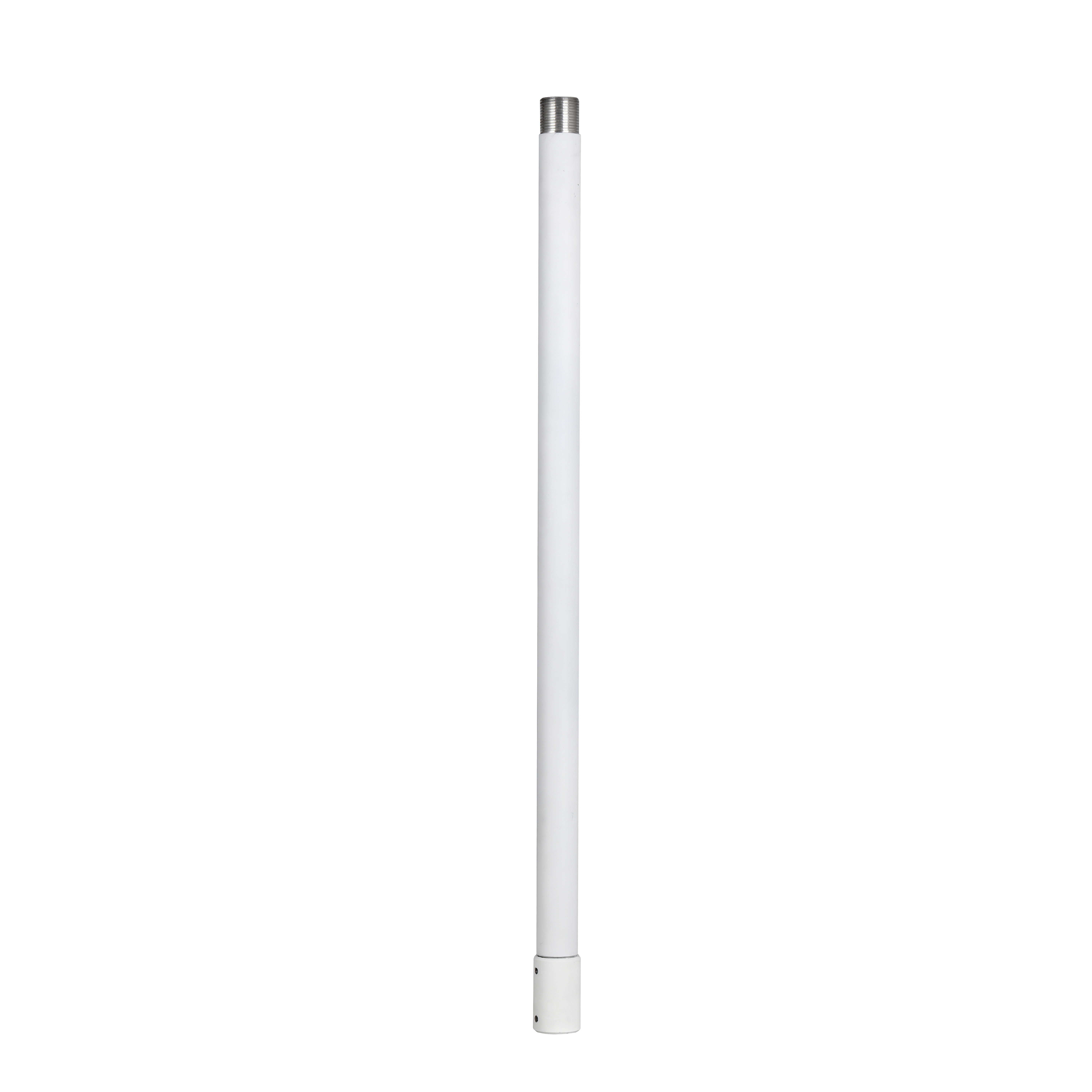

PFA117

Key Points
    • Built of Aluminum Alloy
    • Matched with Specific Ceiling Mount Brackets to Extend the Length of the Suspension Rod
Sales Enquiry
Datasheet

Specifications

Structure

Casing Material

Aluminum alloy

Product Dimensions

Φ42.0 mm × 780.0 mm (Φ1.65" × 30.71")

Appearance Color

White

Net Weight

0.68 kg (1.50 lb)

Gross Weight

0.75 kg (1.65 lb)

Load Bearing

2.0 kg (4.41 lb)

Installation

Ceiling mount

Screw Thread Type

M33

Applicable Model

Please see "Camera Accessories Selection"

Packaging Dimensions

54 mm × 54 mm × 799 mm (2.13" × 2.13" × 31.46") (L × W × H)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic Protection
